Boiler Control Cabinet

The core working principle of the boiler control cabinet is electrical automation intelligent control technology. Taking PLC programmable controller and touch screen HMI as the core, it collects boiler operation data through temperature, pressure, liquid level and flow sensors, and realizes fully automatic start-stop, combustion adjustment, water level control, pressure protection, fault alarm and remote monitoring of the boiler through preset programs. It integrates multiple electrical safety protections such as overload, short circuit, leakage, water shortage and overpressure, replacing manual operation and realizing unattended stable operation of the boiler system. This product strictly complies with the electrical safety standards of International Electrotechnical Commission (IEC) and ISO 9001 quality management system, as well as China's Boiler Safety Technical Code TSG 11-2020. It is the core supporting electrical equipment for industrial boilers, steam boilers, hot water boilers and electromagnetic boilers, widely used in global industrial heating, civil heating, chemical production and other scenarios.

1. AIX Boiler: Core Strength of Export-oriented Source Factory

AIX BOILER is a professional export source factory of boiler control cabinets deeply engaged in the overseas market, with an independent electrical R&D workshop, automatic assembly production line and CE certification testing laboratory. We have been focusing on the R&D, production and export of boiler electric control systems for more than ten years. Our products are exported to more than 50 countries and regions such as Southeast Asia, Middle East, Africa, Latin America, Europe and America. We support foreign trade OEM and ODM customization, and can adapt to 110V/220V/380V/415V multi-voltage standards to meet the electrical specifications of different countries.

We eliminate intermediate price differences. All core components of the control cabinet adopt international/first-tier brands such as Schneider, Siemens and Chint, and support full-qualification export certifications such as CE, CB and ISO. We can customize multi-language touch screens (Chinese/English/Russian/Spanish), which perfectly match our exported boilers, steam headers and water treatment equipment, providing one-stop boiler electric control solutions for overseas customers. We have exported more than 10,000 sets of boiler control cabinets and won unanimous recognition from global customers.

2. Technical Parameter Table of AIX Boiler Control Cabinet Core Models

3. Core Structure and Functional Advantages

1. Export-Grade Quality Core Configuration

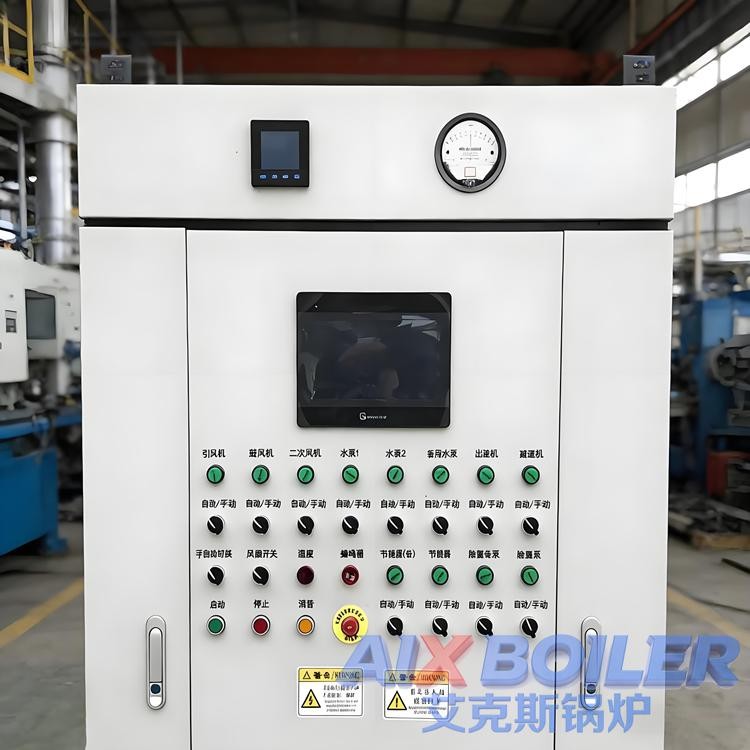

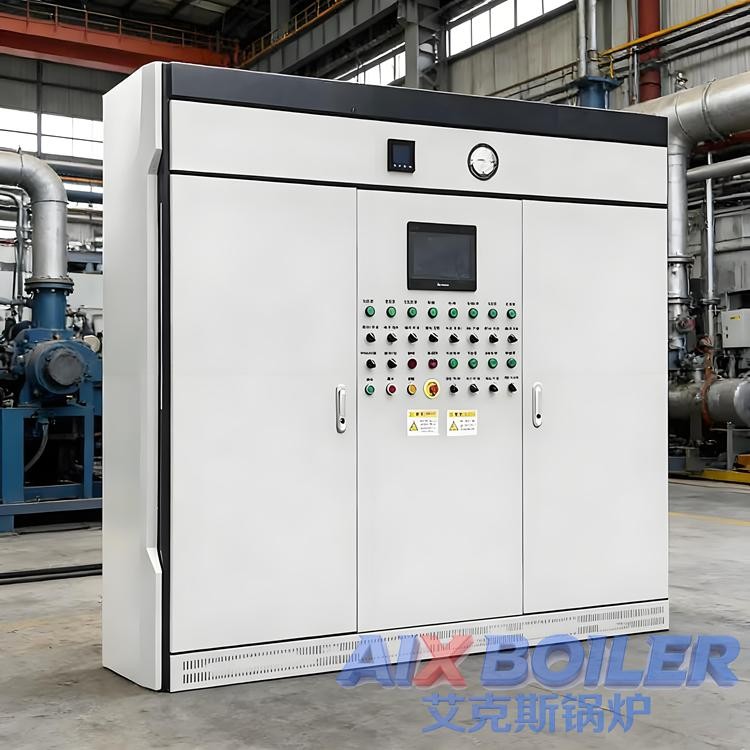

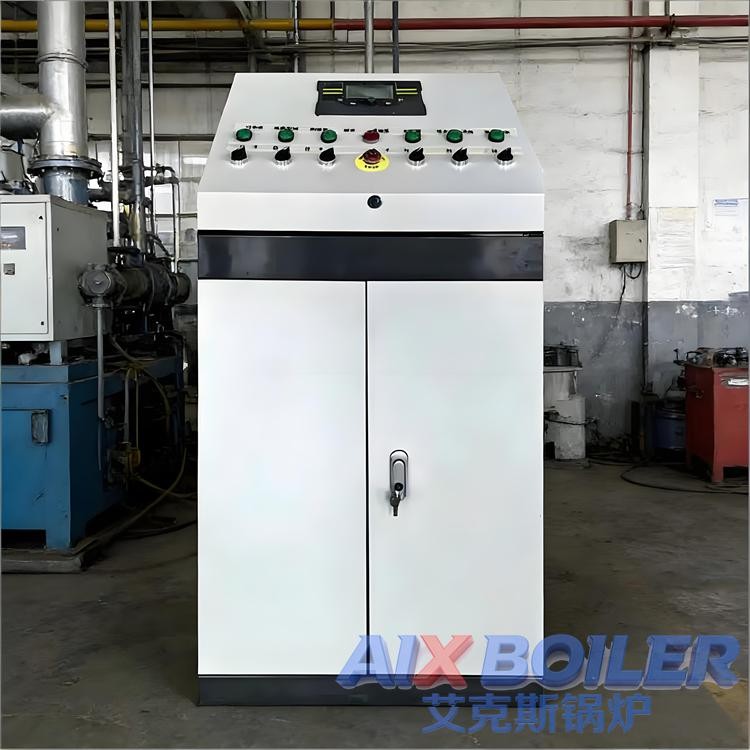

The cabinet is made of cold-rolled steel plate with electrostatic spraying, anti-corrosion and rust-proof; it integrates PLC controller, touch screen, contactor, thermal relay and sensor module inside, with standardized wiring and strong anti-interference ability, adapting to high temperature and high humidity industrial environments and meeting the harsh working conditions overseas.

2. Fully Automatic Intelligent Control, Unattended

Automatic water replenishment, automatic combustion, automatic pressure regulation, automatic sewage discharge, automatic shutdown and alarm for water shortage/overpressure/overtemperature/overload, no manual operation required, reducing the operation and maintenance costs of overseas customers and adapting to industrial continuous production.

3. Multi-Language Customization, Global Adaptation

Support multi-language interfaces such as English, Russian, Arabic and Spanish, adapt to 110V-480V global voltage, 50/60Hz dual frequency compatibility, perfectly solving the problem of overseas electrical standard adaptation.

4. Remote Monitoring, Worry-Free After-Sales for Foreign Trade

Standard 485 communication interface, support Modbus protocol, can be connected to DCS system and mobile APP remote monitoring. Overseas customers can view boiler operation data in real time and troubleshoot remotely, reducing after-sales door-to-door costs.

4. Export Customization Service, Full Chain Guarantee

1. Customization Service: Support OEM/ODM customization of voltage, language, protection grade, communication function and cabinet size to fit local standards;

2. Complete Qualifications: Provide CE, ISO, customs declaration documents and multi-language product manuals to facilitate customs clearance;

3. Quality Inspection: Each control cabinet undergoes 72-hour aging test, power-on test and safety test before delivery, with zero fault delivery;

4. Logistics Guarantee: Support sea, air and land transportation, professional export packaging, moisture-proof and shock-proof, suitable for long-distance transportation;

5. Lifelong After-Sales: 7×24 hours English technical support, remote guidance for installation and commissioning, lifelong supply of accessories.

5. Executive Standards and Authority Certifications

• International Standards: IEC 60439 Low-voltage Switchgear Assemblies, ISO 9001 Quality Management System

• Chinese Standards: TSG 11-2020 Boiler Safety Technical Code, GB 7251 Low-voltage Complete Sets of Equipment

• Export Certifications: CE, CB, RoHS (Customized on Demand)
