Stainless Steel Heating Tube

Stainless steel Heating Tube (metal tubular electric heating element) operates based on three core principles: electric-thermal energy conversion by Joule-Lenz law, uniform heat transfer through insulating and thermally conductive medium, pressure and corrosion resistance of stainless steel shell. It uses 304/316L stainless steel seamless tube as the protective shell, built-in high-resistance nichrome alloy heating wire, and the space between the tube wall and the heating wire is tightly filled with high-purity, high-insulation crystalline magnesium oxide powder as the insulating and thermally conductive medium. It is made through nozzle sealing, tube shrinking, annealing, testing and other processes. When powered on, the heating wire efficiently converts electric energy into heat energy, which is quickly and uniformly transferred to the stainless steel tube wall through magnesium oxide powder, and then stably heats the fluid, solid and gas media. It is the core basic component of boiler matching and industrial fluid heating systems certified by China Standardization Administration. As an original production factory, AIX Boiler strictly follows the national specifications of JB/T2379-2012, GB/T23150-2008 from Standardization Administration of China, and independently controls the whole process of R&D, design, manufacturing and testing to ensure product safety, compliance, stable performance and high energy efficiency.

1. AIX Boiler Brand & Original Factory Core Advantages

AIX Boiler is a comprehensive thermal energy equipment and pressure-bearing equipment manufacturer integrating R&D, design, production, installation, commissioning and EPC service, specializing in stainless steel heating tubes, electromagnetic heating reactors, boiler supporting equipment, pressure vessels, Heat Exchangers, storage tanks and other products. We have a standardized electric heating element production workshop, automatic wire winding, powder filling, tube shrinking equipment, certified welding and electrical testing teams, realizing independent production from stainless steel tube procurement and re-inspection, heating wire selection, insulating material filling, forming and welding, performance testing, pressure resistance test to finished product delivery without middlemen, providing higher cost performance and more controllable delivery time with the same quality. With years of deep cultivation in the thermal energy equipment industry, our products have passed a number of electrical safety and explosion-proof tests, complying with national electric heating element safety specifications, adapting to strict working conditions in boiler, chemical, food, pharmaceutical, HVAC, water treatment, new energy and other industries, serving thousands of enterprises nationwide, winning market trust with stable product quality, professional technical R&D and perfect after-sales service, becoming a trustworthy brand manufacturer in the field of stainless steel heating tubes.

2. Working Principle & Structural Composition

2.1 Core Working Principle

Based on Joule-Lenz law, when current passes through the built-in nichrome alloy heating wire, electric energy is converted into Joule heat. High-purity crystalline magnesium oxide powder quickly and uniformly conducts the heat generated by the heating wire to the wall of the stainless steel outer tube, realizing continuous heating of the heated medium. Magnesium oxide powder also plays an insulating role, completely isolating the live heating wire from the stainless steel shell to ensure electrical safety. The product can be directly immersed in liquid, embedded in solid, or heated in gas environment, with fast thermal response, high temperature control accuracy, and heat conversion efficiency of more than 98%, far exceeding traditional resistance wire, steam heating and other methods.

2.2 Structural Composition

AIX stainless steel heating tube adopts modular structure design, and the core components can be customized according to working conditions. It is mainly composed of six core parts:
① Stainless steel protective shell: optional 304, 316L, 321, 310S stainless steel, Incoloy800 superalloy and other materials, with excellent corrosion resistance, high temperature resistance, pressure bearing capacity, adapting to different medium working conditions;
② Heating core: using nichrome alloy (Cr20Ni80), iron-chromium-aluminum alloy heating wire, with stable resistivity, strong oxidation resistance, uniform heating and long service life;
③ Insulating and heat conducting layer: high-purity molten crystalline magnesium oxide powder, insulation resistance >1000MΩ, high thermal conductivity, high temperature resistance, good moisture resistance, ensuring electrical safety and heat transfer efficiency;
④ Sealing structure: multi-channel sealing process such as silica gel, epoxy resin, glass glaze, ceramics, waterproof, moisture-proof, explosion-proof, suitable for humid, high pressure, flammable and explosive special environments;
⑤ Wiring terminal: pure copper nickel-plated terminal, good electrical conductivity, high temperature resistance, oxidation resistance, adapting to different wiring methods;

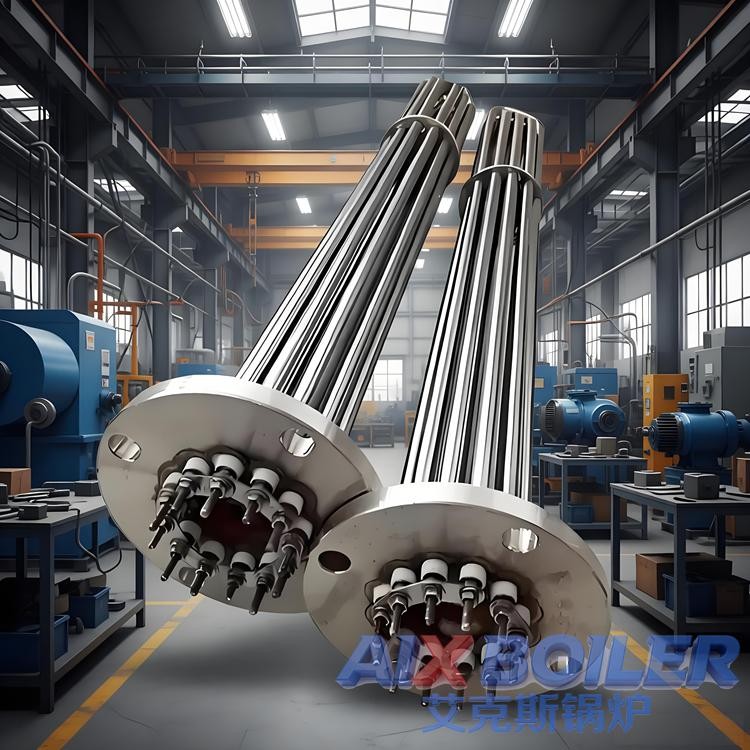

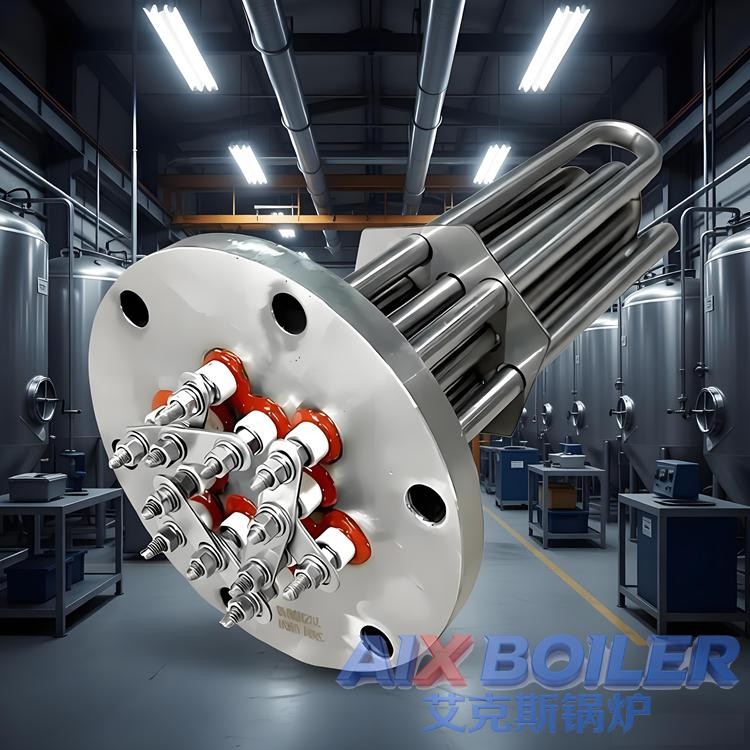

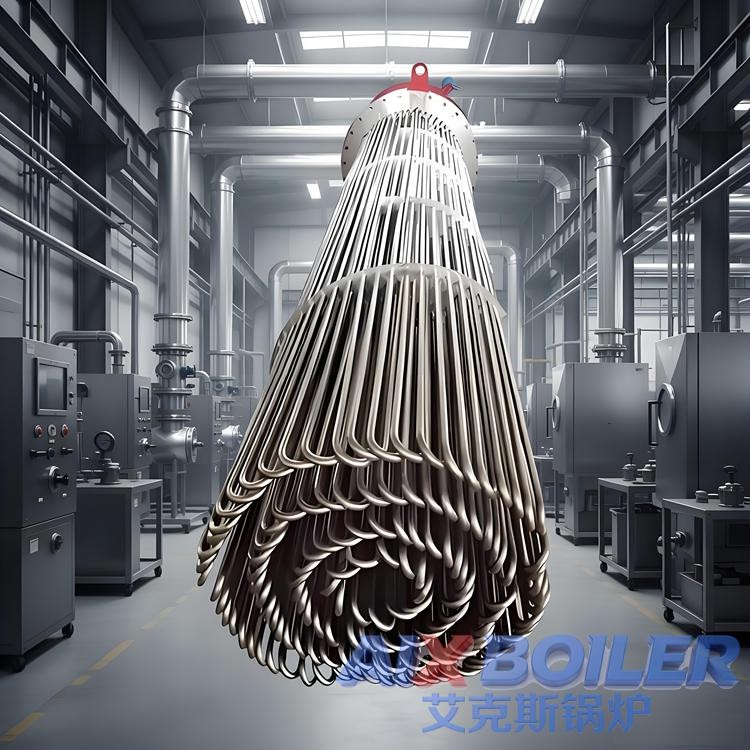

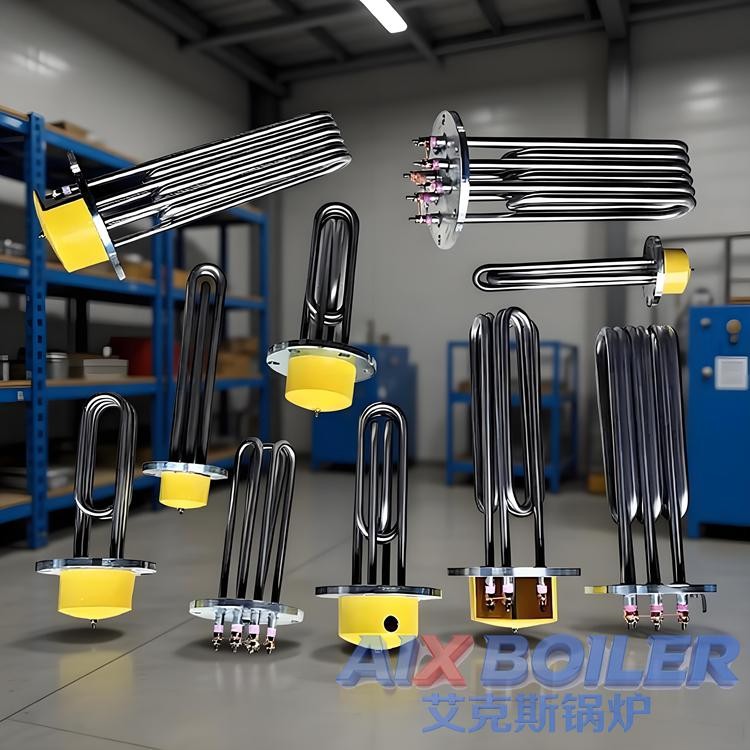

⑥ Installation and fixing structure: optional flange type, screw thread type, clamp type, U-type, W-type, straight type and other installation forms, perfectly adapting to various installation scenarios such as boilers, water tanks, reactors, pipelines.

3. Core Technical Parameters & Standards

4. Standard Flange Heating Tube Model Parameter Table

5. Comprehensive Performance Comparison with Traditional Heating Methods

6. Manufacturing Process & Quality Control

AIX Boiler implements full-process strict quality control for stainless steel heating tubes, with full traceability from raw materials to finished products, ensuring that each product meets performance standards and is safe and reliable:
1. Raw Material Control: select genuine 304/316L stainless steel seamless tubes, Cr20Ni80 high-purity nichrome heating wire, food-grade crystalline magnesium oxide powder. Each batch of raw materials is accompanied by material certificate and test report, and spectral inspection and resistivity inspection are carried out before entering the factory to prohibit unqualified materials from entering the factory;
2. Precision Processing Technology: adopt automatic CNC wire winding equipment, the heating wire is wound with uniform spacing and good heating consistency; automatic powder filling equipment, the magnesium oxide powder is filled with uniform density to ensure insulation and thermal conductivity; CNC tube shrinking process, the tube diameter is reduced uniformly, the tube wall and the core are closely combined to maximize the heat transfer efficiency;
3. Welding & Sealing Process: certified welders use argon arc welding to weld flanges and terminals, the weld seam is beautiful, no porosity, no cracks; multi-channel sealing process, silica gel + epoxy resin + ceramic triple sealing, waterproof and moisture-proof, prevent magnesium oxide powder from moisture absorption failure;
4. Full Performance Testing: each product undergoes strict testing before delivery, including: cold insulation resistance test, withstand voltage breakdown test, power deviation test, heating performance test, sealing and moisture-proof test, appearance and size inspection. All indicators meet the standards before delivery;
5. Standardized Packaging: products are independently packaged, with certificate of conformity, test report, installation and operation manual. We can provide explosion-proof certification, electrical safety test report and other qualification documents to meet customer project acceptance requirements.

7. Typical Application Scenarios

With the characteristics of high efficiency, energy saving, safety, explosion-proof, corrosion resistance and strong customization, AIX stainless steel heating tubes are widely used in the core heating links of many industries:
1. Boiler & HVAC Industry: steam boiler, hot water boiler matching electric heating, central air conditioning water system heating, central heating auxiliary heating, floor heating water circulation heating;
2. Chemical Industry: reactor material heating, pipeline fluid heating, chemical solvent preheating, wastewater treatment heating, electrolyte constant temperature heating;
3. Food & Pharmaceutical Industry: drinking water, beverage, dairy heating, food cooking equipment matching, pharmaceutical purified water heating, GMP clean workshop constant temperature equipment, traditional Chinese medicine extraction and concentration heating;
4. Water Treatment Industry: domestic hot water, sewage treatment heating, reverse osmosis pure water system constant temperature, swimming pool water heating, seawater desalination preheating;
5. New Energy Industry: lithium battery electrolyte constant temperature heating, photovoltaic material production heating, hydrogen energy related medium heating, energy storage system constant temperature matching;
6. Other Industries: electroplating bath constant temperature, coating equipment drying heating, plastic machinery matching heating, agricultural greenhouse water temperature heating, marine equipment matching heating.

8. OEM Customization & One-stop Service

As an original factory, AIX Boiler provides customers with full-dimensional non-standard customization and full-process one-stop service:
1. Pre-sales Technical Docking: professional engineers one-to-one communication, according to customer's heating medium, working temperature, working pressure, use environment, installation space, power and voltage demand, issue customized design scheme and accurate quotation;
2. Full Specification Customization Capability: customizable flange type, screw type, U-type, W-type, L-type, special shape and other structures, power coverage from 0.5KW to 500KW, material, length, pipe diameter, installation method can be customized according to demand, perfectly adapting to various special working conditions;
3. Compliance Certification Support: can provide product explosion-proof certification, electrical safety test report, material certificate, certificate of conformity and other full set of qualification documents to meet various project acceptance and system certification requirements;
4. Installation & Commissioning Service: professional technical team provides on-site installation, wiring, commissioning, personnel operation training services to ensure the smooth commissioning of the equipment;
5. Lifetime After-sales Service: 12 months warranty for the whole machine, 24 months warranty for core products, lifetime technical support and spare parts supply, 24-hour after-sales response to solve customer worries;
6. System Supporting Service: can provide matching intelligent temperature control cabinet, PLC control system, soft start/variable frequency control system, realize fully automatic unattended operation of heating system, undertake EPC general contracting service of heating system.

9. Core Product Advantages

9.1 Ultra-high Efficiency & Energy Saving, Greatly Reduce Operating Cost

AIX stainless steel heating tube realizes direct conversion of electric energy to heat energy, with thermal efficiency exceeding 98%, saving 30%-50% energy compared with traditional steam heating and resistance wire heating. No need for supporting equipment such as boilers and circulating pumps, greatly reducing the early infrastructure investment and later operating energy consumption cost. The product has uniform heating, fast thermal response, can realize precise start-stop control, no standby heat loss, further reducing production energy consumption.

9.2 Complete Material Specifications, Adapt to Full Scenario Working Conditions

As an original factory, we can customize the suitable material according to customer's working conditions: 304 stainless steel for conventional clean water environment, 316L stainless steel for chloride ion, acid and alkali corrosion environment, 310S stainless steel/Incoloy800 superalloy for high temperature working conditions, fundamentally solving the problems of tube corrosion, oxidation and cracking, greatly extending the service life of the product. At the same time, we can customize special functions such as waterproof, moisture-proof, explosion-proof, dry-burning protection, adapting to various harsh working conditions such as humid, high pressure, flammable and explosive, vacuum.

9.3 Multiple Safety Protection, Intrinsically Safe and Reliable

The product adopts fully sealed insulation structure, the live core is completely isolated from the stainless steel shell, cold insulation resistance ≥1000MΩ, withstand voltage 2000V without breakdown, fundamentally eliminating the risk of electric leakage. It can be matched with multiple safety functions such as over-temperature protection, dry-burning protection, over-pressure protection, overload protection, leakage protection, realizing the whole process safety closed-loop control. The explosion-proof products comply with national explosion-proof standards and can be used in flammable and explosive hazardous environments, with safety performance far exceeding traditional heating methods.

9.4 Stable & Durable Structure, Extremely Low Maintenance Cost

Adopting fully sealed integrated structure, no mechanical moving parts, no wearing parts, service life can reach more than 30000 hours under normal working conditions; modular installation design, convenient disassembly and assembly, no regular maintenance required, only daily routine inspection, annual maintenance cost is less than 1/10 of the traditional heating system, greatly reducing downtime maintenance time and improving production continuity.

9.5 Precise Intelligent Temperature Control, Improve Production Process Stability

With intelligent PID temperature control system, the temperature control accuracy can reach ±1℃, supporting multi-stage program heating, constant temperature and cooling control, perfectly adapting to temperature-sensitive fine chemical, pharmaceutical, new material production processes, solving the pain points of large temperature fluctuation and strong hysteresis of traditional heating methods, effectively improving product quality and production yield. At the same time, it supports data storage, remote communication, unattended operation, realizing digital management of the production process.

10. Purchase Instruction & Cooperation Process

For purchasing stainless steel heating tubes, please provide the following core process parameters: name and characteristics of the heated medium (corrosivity, pH value), working temperature, working pressure, use environment (waterproof/explosion-proof/moisture-proof), required rated power, rated voltage, installation form and specification, heating tube length, pipe diameter requirements, nozzle configuration, on-site installation conditions, etc. Our professional engineers will quickly issue a compliant design scheme and accurate quotation for you. AIX Boiler adheres to quality first and integrity management. All products are manufactured in strict accordance with national electric heating element standards and delivered only after passing the inspection. We have complete production qualifications and testing capabilities. Welcome customers to visit our factory and discuss cooperation.

AIX Boiler – Professional Original Factory of Stainless Steel Heating Tubes, Building Quality with Technology, Winning Trust with Service, Providing Safe, High-Efficiency, Energy-Saving, Durable Industrial Electric Heating Elements and Heating System Total Solutions for Global Customers.
