Feed Water Pump

Boiler feed water pump is the core pressurized conveying equipment of boiler thermal system. Its basic principle is based on multistage centrifugal fluid mechanics: the motor drives the pump shaft to rotate multistage impellers at high speed. Under centrifugal force, water flow is thrown from the center of the impeller to the outer edge, gains kinetic energy, and then converts kinetic energy into pressure energy through the guide vane and pump casing. Multistage impellers superpose pressure step by step, and finally convey the softened water from deaerator or water tank to boiler drum continuously with stable high pressure, ensuring the continuous and stable operation of boiler evaporation, heat exchange and steam output. It is an indispensable auxiliary machine for industrial boilers, power station boilers and heating boilers Reference: Baidu Baike · Boiler Feed Water Pump. As an original factory with more than ten years of experience in manufacturing pump valves and boiler supporting equipment, AIX Boiler takes independent R&D, precision manufacturing and full-process quality control as core advantages, creating special boiler feed water pumps suitable for medium and high pressure, large flow and long-cycle operation scenarios. Our products are widely used in chemical, metallurgical, electric power, paper making, park central heating and other industries, matching all kinds of steam boilers and hot water boilers from 1 ton to 220 tons, solving core pain points such as high-pressure water supply, stable flow, cavitation resistance and high temperature resistance, reducing procurement costs, improving operation efficiency and extending service life for users.

1. Core Structure and Working Advantages of AIX Boiler Feed Water Pump

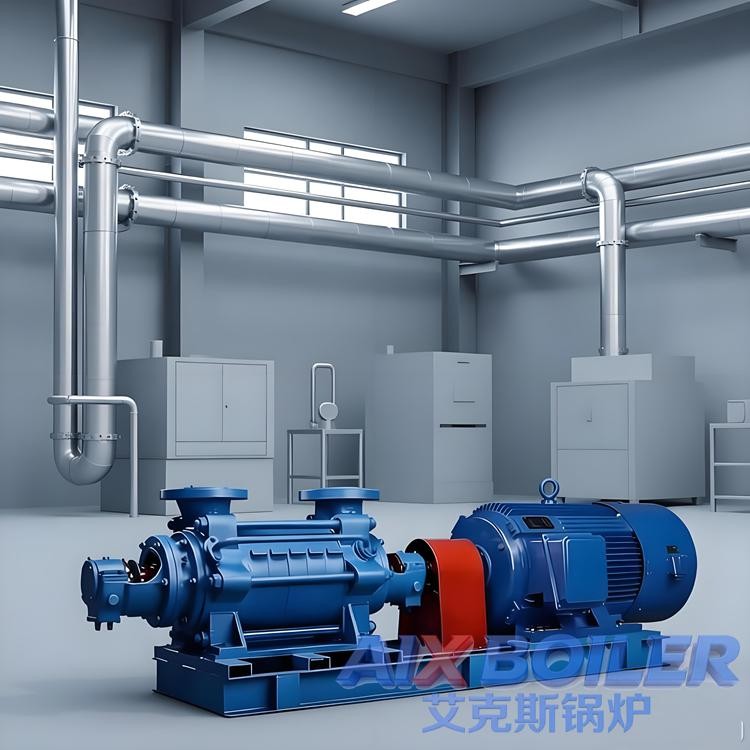

AIX Boiler feed water pump adopts horizontal single-suction multistage segmented structure, which is composed of eight core parts: suction section, middle section, discharge section, guide vane, rotor parts, bearing assembly, shaft seal system and balancing device. All flow passage components are made of high-quality cast steel or stainless steel, resistant to high temperature, high pressure and corrosion, ensuring equipment stability and durability from the structural root. The rotor parts adopt high-precision impeller and rigid pump shaft combination, corrected by dynamic balance test, with small vibration and low noise during operation; the axial force adopts balance disc + thrust bearing combined compensation device, which automatically offsets axial thrust, reduces bearing load and prolongs continuous operation cycle; the shaft seal is equipped with standard mechanical seal, optional packing seal, matched with cooling and flushing structure, effectively preventing leakage, suitable for high-temperature water supply conditions of 105℃—250℃ Reference: AYi Network · Selection and Maintenance of Boiler Feed Water Pump. As an original factory, AIX Boiler realizes independent control of the whole chain from casting processing, parts assembly, performance testing to factory commissioning, refusing OEM. Each pump has passed multiple authoritative verifications such as hydraulic test, performance bench test, vibration and noise test, temperature rise test, ensuring factory performance and reliable operation.

2. Core Technical Parameter Table of AIX Boiler Feed Water Pump

Note: The above are conventional model parameters. AIX Boiler original factory supports non-standard customization, and can adjust flow, head, temperature, material, interface size and other parameters according to users' actual working conditions to meet the needs of special scenarios.

3. Performance Highlights of AIX Boiler Feed Water Pump

1. Direct supply from original factory with outstanding cost performance: AIX Boiler has standardized production workshops, CNC processing equipment and professional testing platforms, eliminating intermediate distribution links. With the same configuration, the price is better and the delivery cycle is shorter. It supports batch procurement and spot delivery, providing efficient supply guarantee for engineering supporting, equipment maintenance and new projects.

2. High efficiency and energy saving, low operation cost: The pump flow passage is optimized by CFD fluid simulation, hydraulic efficiency is increased by 8%—15%, low energy consumption and high output. Combined with high-efficiency motor, long-term operation can significantly reduce electricity costs, suitable for enterprise energy-saving transformation and green production needs.

3. Excellent anti-cavitation performance: Adopting special double-suction inlet structure and low NPSH impeller design, combined with positive pressure water inlet conditions of deaerator, effectively avoiding cavitation under high-temperature water supply conditions, protecting flow passage components and prolonging equipment overhaul cycle.

4. Strong adaptability and wide application: It can convey clean water, softened water, deaerated water and other media, suitable for medium and low pressure, high pressure, sub-high pressure boiler systems, meeting the needs of boiler water supply in industrial production, urban heating, power station power generation, chemical process and other fields Reference: Zoomlian Pump · DG Type Multistage Pump Technical Specification.

5. Convenient installation and maintenance: Horizontal segmented structure is easy to disassemble and overhaul, vulnerable parts are standardized and universal. The original factory provides sufficient spare parts support and on-site commissioning services, reducing user operation and maintenance difficulty and downtime loss.

4. Strength and Service Guarantee of AIX Boiler Original Factory

AIX Boiler is a professional boiler supporting equipment manufacturing enterprise integrating R&D, design, production, sales and service, focusing on R&D and manufacturing of fluid equipment such as boiler feed water pumps, circulating pumps and booster pumps. It has a number of utility model patents and industry certifications, passing ISO9001 quality management system and ISO14001 environmental management system certifications. Products comply with national and industry standards such as GB/T5656-2018 Technical Specifications for Centrifugal Pumps and NB/T47043-2014 Boiler Feed Centrifugal Pumps Reference: Changsha Pump Factory · Pump Product Implementation Standards. As an original factory, we provide users with full life cycle services: free working condition survey, parameter selection and scheme design before sales; strict production control, performance testing and on-time delivery during sales; one-stop support such as installation guidance, commissioning training, fault maintenance and spare parts supply after sales. We promise free maintenance and replacement within the warranty period, lifelong maintenance at cost price, so that users can purchase and use with confidence.

5. Applicable Scenarios and Customer Value

AIX Boiler feed water pumps are widely applicable to various boiler systems such as industrial steam boilers, power station boilers, circulating fluidized bed boilers, gas-fired and oil-fired boilers, hot water boilers, specifically covering park central heating, power plant power generation, chemical production lines, metallurgical smelting, paper printing and dyeing, food processing, pharmaceutical production and other industries. Choosing AIX original factory boiler feed water pump, users can obtain stable and reliable high-pressure water supply guarantee, improve boiler thermal efficiency, reduce equipment failure rate and operation and maintenance costs, achieve safe, efficient, energy-saving and long-cycle operation, and help enterprises improve production efficiency and market competitiveness.

6. Conclusion

With mature centrifugal pressurization principle, sturdy and durable structure design, stable and excellent operation performance, and price advantage of original factory, AIX Boiler feed water pump has become the preferred equipment for boiler supporting water supply system. We adhere to technological innovation as the driving force, quality control as the core, and customer demand as the orientation, continuously optimize product performance and service system, and provide global users with high-quality, cost-effective and highly adaptable boiler feed water pump solutions. Welcome new and old customers to visit our factory for investigation and negotiation. AIX Boiler original factory will join hands with you to win-win and create industrial value with professional ability and honest service.
