Unsaturated Polyester Resin Reactor

Unsaturated polyester resin reactor is a special reaction equipment for synthesis and modification of thermosetting resins such as unsaturated polyester resin (UPR), epoxy resin, phenolic resin and acrylic resin. Its basic principle is to complete the whole process of polycondensation, crosslinking dilution, cooling and blending through the cooperative work of precise temperature control, frequency conversion stirring, vacuum dehydration and condensation reflux systems in a closed pressure-bearing kettle, realizing stable synthesis of resin from liquid raw materials to qualified finished products. It has core characteristics of closed anti-volatilization, precise temperature control, uniform stirring, high dehydration efficiency, safety and environmental protection, serving as the core production equipment for resin production, composite materials, artificial stone, coatings and adhesives industriesReference: Baidu Encyclopedia - Unsaturated Polyester Resin. As a source factory integrating R&D, design, manufacturing, installation, commissioning and EPC services, AIX Boiler strictly implements GB150 Pressure Vessels standards of Standardization Administration of China, focusing on R&D and manufacturing of unsaturated resin reactors, providing safe, stable, efficient and customizable integrated resin synthesis solutions for global resin enterprises.

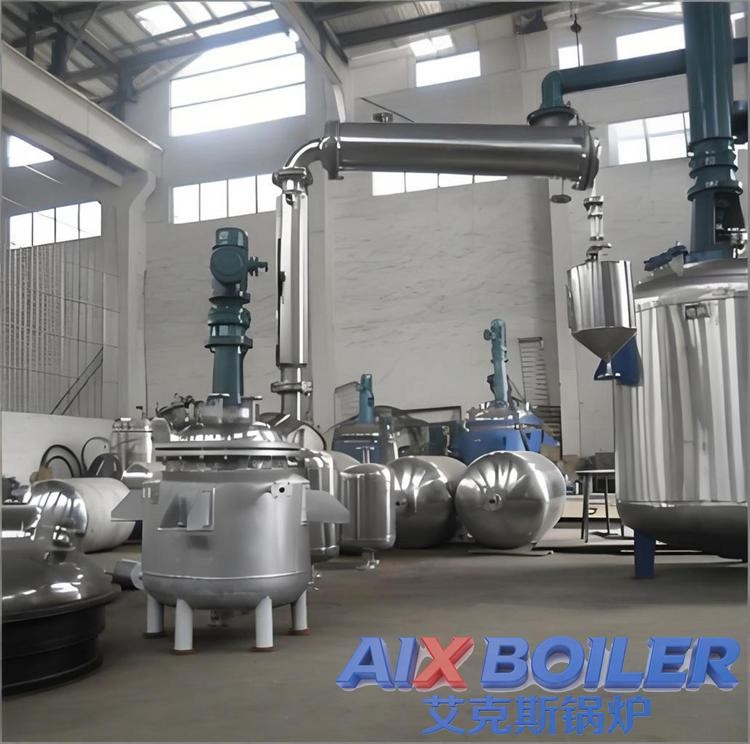

AIX Boiler - Unsaturated Polyester Resin Reactor Actual Photo

1. Product Overview

AIX Boiler unsaturated polyester resin reactor is made of 304/316L stainless steel with mirror polishing, featuring high temperature resistance, corrosion resistance, easy cleaning, non-stick and no dead corners. Equipped with jacket/half-pipe heating system, frequency conversion stirring system, vacuum system, condensation reflux system, temperature and pressure measurement system and PLC automatic control system, it can complete polycondensation, esterification, dehydration, dilution, blending, dispersion and other processes. The equipment covers volume from 50L to 50000L, working temperature -20℃～300℃, working pressure atmospheric pressure～0.6MPa, supporting various heating methods such as electric heating, steam heating and heat transfer oil heating, widely used in synthesis of unsaturated polyester resin, epoxy resin, phenolic resin, alkyd resin, acrylic resin and other resins. As a source factory, we support full-dimensional non-standard customization, tailored to users' capacity, process, formula and site requirements, truly realizing one reactor for one process and one reactor for one scheme.

2. Core Structure and Working System

AIX unsaturated resin reactor consists of kettle body, kettle cover, stirring system, heating and cooling system, vacuum system, condensation reflux system, sealing system, safety accessories and control system, with stable structure and efficient operation:

• Kettle Body & Cover: Integrally formed by 304/316L stainless steel, inner wall mirror polished Ra≤0.4μm, no material hanging, easy cleaning;

• Stirring System: Optional anchor, frame, paddle, dispersion disc, helical ribbon type, frequency conversion speed regulation, uniform stirring without dead corners;

• Heating System: Jacket/outer half-pipe structure, electric heating, steam, heat transfer oil heating, temperature control accuracy ±1℃;

• Vacuum System: Equipped with vacuum pump and vacuum gauge for rapid dehydration, improving resin transparency and viscosity;

• Condensation Reflux System: Condenser + receiving tank, solvent recovery, reduce volatilization, environmental protection and safety;

• Sealing System: Mechanical seal/packing seal, good tightness, prevent solvent volatilization and leakage;

• Safety Accessories: Safety valve, bursting disc, pressure gauge, temperature port, explosion-proof device, safe and compliant;

• Control System: PLC automatic control, temperature, speed, time, vacuum can be set for automatic operation.

3. Core Technical Parameters of Unsaturated Resin Reactor

4. Core Advantages (AIX Boiler Source Factory)

1. Special for Resin Synthesis · Strong Process Adaptability
Specially designed for synthesis of unsaturated polyester resin, epoxy resin, phenolic resin, etc., perfectly adapting to polycondensation, esterification, dehydration, dilution and blending, improving product purity and stability.

2. Stainless Steel Mirror · Corrosion Resistant & Easy Cleaning
304/316L stainless steel mirror polishing, acid and alkali resistant, high temperature resistant, non-stick, no dead corners, meeting hygiene requirements of food and resin industries, convenient cleaning and maintenance.

3. Precise Temperature Control · More Stable Reaction
High-efficiency jacket/half-pipe heat exchange with PLC automatic control system, temperature control accuracy ±1℃, avoiding resin yellowing and deterioration caused by local overheating, ensuring product quality.

4. Closed Vacuum · Anti-volatilization & Low Loss
Fully closed structure + vacuum system + condensation reflux, effectively reducing volatilization of styrene and other solvents, lowering raw material loss, environmental protection and safety, complying with safety supervision requirements.

5. Source Factory · Higher Cost Performance
Independent R&D and production, no middleman price difference, 15%–30% lower than market price with same configuration, controllable delivery cycle and faster after-sales response.

6. One-Stop Customization · Turnkey Project
Provide full-chain services from design → manufacturing → installation → commissioning → training → after-sales, supporting complete sets of equipment including condenser, storage tank, vacuum pump, pipeline, etc.

5. Applicable Industries and Typical Processes

Applicable Industries: Unsaturated resin production, epoxy resin production, phenolic resin, acrylic resin, alkyd resin, artificial stone, FRP, coatings, adhesives, composite materials, etc.

Typical Processes: Polycondensation, esterification, vacuum dehydration, crosslinking dilution, cooling blending, dispersion mixing, solvent recovery, etc.

Applicable Resins: Unsaturated Polyester Resin (UPR), Epoxy Resin, Phenolic Resin, Acrylic Resin, Alkyd Resin, Amino Resin, Silicone Resin, etc.

6. Brand Strength and Service Guarantee

AIX Boiler has many years of experience in chemical reaction equipment manufacturing, possessing Class I, II, III pressure vessel design and manufacturing qualifications, certified by ISO quality management system. Equipped with professional R&D team, automatic production equipment and perfect testing system. We provide customers with:

• Free process consultation, formula adaptation, scheme design and drawing confirmation;

• Rapid response for non-standard customization, transparent and controllable construction period;

• Full-process quality inspection, complete factory data, worry-free acceptance;

• On-site installation and commissioning, operation training and maintenance guidance;

• 7×24 hours after-sales response, long-term spare parts supply.

7. Conclusion

With special design for resin synthesis, stainless steel clean material, precise temperature control system, closed vacuum structure and source factory cost-effectiveness, AIX Boiler unsaturated resin reactor has become the preferred equipment for resin production, artificial stone, FRP, coatings and adhesives industries. The equipment is stable, safe, environmental-friendly, low in energy consumption and high in quality, which can greatly improve resin output and qualification rate, reduce production costs. Choosing AIX Boiler means choosing professional, reliable and efficient integrated solutions for resin synthesis.

For customized unsaturated resin reactors, stainless steel resin synthesis reactors or electric heating resin reactors, please contact AIX Boiler for exclusive solutions and accurate quotations.
