Hot Water Boiler Circulating Pump

Hot water boiler circulating pump is the core power equipment of forced circulation hot water boiler system. Its basic principle is based on centrifugal fluid mechanics and closed pipe network circulation mechanism: the motor drives the impeller to rotate at high speed to form negative pressure, sucks the system return water into the pump chamber, the medium obtains kinetic energy and pressure energy under the action of centrifugal force, completes energy conversion through the pump casing and guide vane, and pushes high-temperature hot water to form a closed cycle between the boiler body, Heat Exchanger, pipe network and end equipment with stable flow and head, continuously completing heat transmission and exchange, ensuring uniform heating, safe pressure stabilization and efficient heat supply of hot water boilers. It is an indispensable key supporting pump unit for central heating, industrial hot water, hotel bathing, park heating and other scenarios Reference: Baidu Baike · Hot Water Circulating Pump. As an original factory with more than ten years of experience in boiler supporting equipment, AIX Boiler independently researches, develops, produces and tests, focusing on creating special circulating pumps suitable for AIX full series of hot water boilers. Our products cover high temperature resistance, large flow, low noise and long service life, strictly in accordance with GB50041-2020 Code for Design of Boiler Room and CJJ/T34-2022 Code for Design of Urban Heating Pipe Network. We control the whole process from raw materials, processing, assembly to testing, providing users with cost-effective, stable and highly adaptable one-stop circulating pump solutions Reference: China Academy of Building Research · Heating Pipe Network Design Standards.

1. Structure and Core Advantages of AIX Hot Water Boiler Circulating Pump

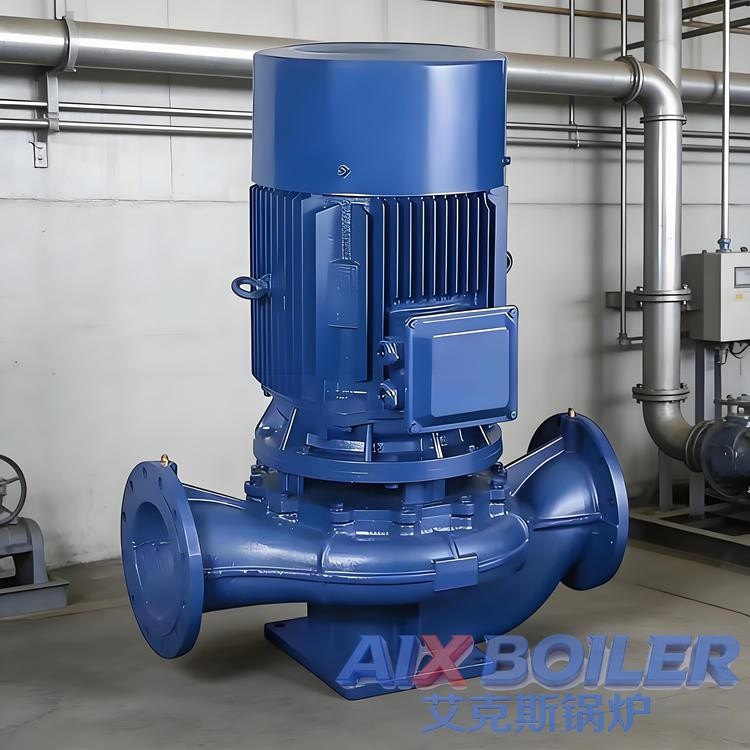

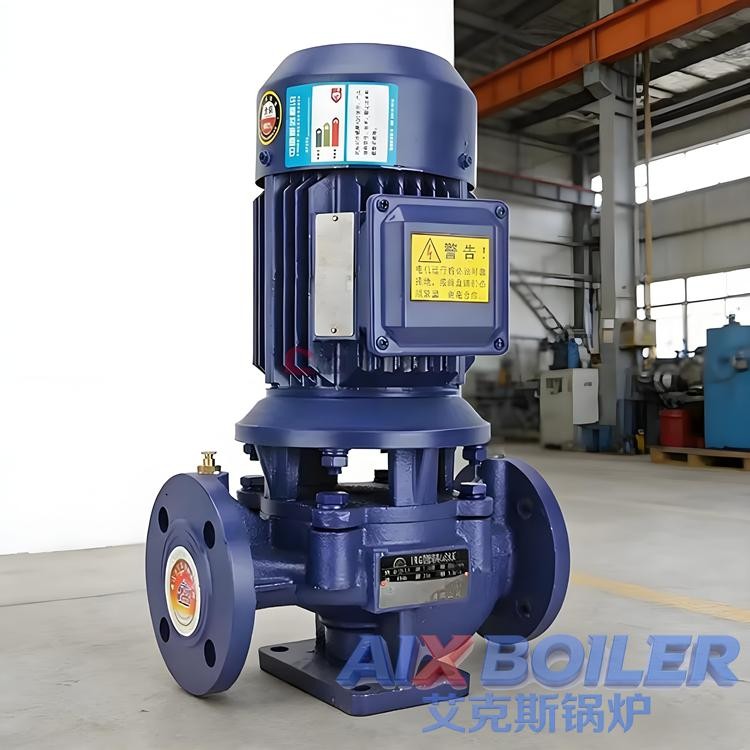

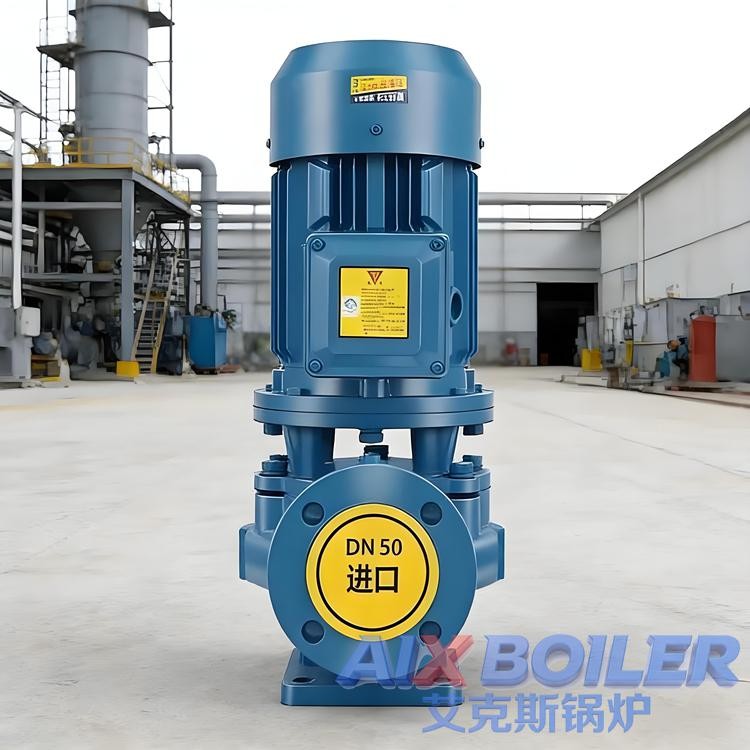

AIX hot water boiler circulating pump adopts horizontal/vertical single-stage centrifugal pump structure, composed of pump body, impeller, shaft seal, bearing, motor, seal components, etc. The flow passage parts are made of cast iron, ductile iron or stainless steel, resistant to high temperature hot water up to 160℃, suitable for atmospheric pressure/pressure hot water boiler systems. The shaft seal adopts high temperature resistant mechanical seal, no leakage, maintenance-free and long service life; the impeller is optimized by CFD fluid design, with high hydraulic efficiency and excellent cavitation resistance, effectively avoiding cavitation damage under high temperature conditions; the rotor components are corrected by high-precision dynamic balance, with small vibration and low noise during operation, and the continuous trouble-free operation time is greatly increased. As an original factory, AIX realizes independent control of the whole process from casting processing, parts production, complete machine assembly to performance testing, refusing OEM. Each pump has passed hydraulic test, performance bench test, temperature rise test and tightness test to ensure that it meets the standard when leaving the factory. It perfectly matches the installation size, interface and control system of AIX boilers, ready for use without modification Reference: Zoomlian Pump · Boiler Circulating Pump Selection Guide.

2. Core Technical Parameter Table of AIX Hot Water Boiler Circulating Pump

Note: The above are conventional model parameters. AIX original factory supports non-standard customization, which can be customized according to flow, head, temperature, material, caliber, frequency conversion and other requirements, perfectly suitable for all kinds of hot water boiler systems.

3. Performance Highlights of AIX Hot Water Boiler Circulating Pump

1. Direct supply from original factory with higher cost performance: AIX has standardized production workshops, CNC processing equipment and professional testing platforms, eliminating intermediate links. With the same configuration, the price is better and the delivery is faster. It supports batch procurement and spot delivery, providing efficient supply guarantee for new projects, renovation projects and maintenance replacement.

2. Strong high temperature resistance and more stable operation: Special high temperature material and sealing structure, which can transport high temperature hot water of 120–160℃ for a long time without aging, leakage or deformation, suitable for all kinds of oil-fired, gas-fired, electric heating and Biomass hot water boilers.

3. High efficiency and energy saving, reducing operating costs: CFD optimized hydraulic model, efficiency increased by 8%–15%, matched with high-efficiency energy-saving motor, significantly reducing electricity costs for long-term operation, meeting energy-saving transformation and green production requirements.

4. Low noise and vibration, wide application scenarios: high dynamic balance accuracy, stable operation and low noise, suitable for noise-sensitive places such as hotels, hospitals, communities and office buildings, and can also meet industrial high-temperature circulation needs such as chemical industry, printing and dyeing, slaughtering.

5. Simple installation and maintenance, universal wearing parts: flexible installation of horizontal/vertical structure, convenient disassembly, standardized wearing parts. The original factory reserves spare parts all year round, providing full-cycle services such as on-site commissioning, fault maintenance and technical guidance.

6. Perfectly matching AIX boilers: precise matching of size, interface and performance, coordinated operation with boiler control system, improving system automation level and heating stability, reducing failure rate and operation and maintenance costs.

4. Strength and Service Guarantee of AIX Original Factory

AIX Boiler is a professional boiler supporting equipment manufacturing enterprise integrating R&D, design, production, sales and service, focusing on hot water boiler circulating pumps, boiler feed water pumps, pipeline pumps, booster pumps and other fluid equipment. It has a number of patents and ISO9001, ISO14001 system certifications, and products comply with national and industry standards such as GB/T5656 and GB/T16907 Reference: Guangyi Pump Industry · ISR Type Hot Water Circulating Pump Technical Specification. We provide customers with full life cycle services: free working condition survey, parameter calculation, scheme selection and drawing design before sales; strict production control, performance testing and on-time delivery during sales; provide installation guidance, operation training, rapid maintenance and spare parts supply after sales. We promise free maintenance and replacement within the warranty period, lifelong maintenance at cost price, so that customers can purchase and use with confidence.

5. Applicable Scenarios and Customer Value

AIX hot water boiler circulating pumps are widely used in community central heating, hotel hot water systems, school and hospital heating, industrial park heating, chemical printing and dyeing high-temperature hot water, food processing hot water circulation, biomass boiler matching, gas boiler matching, Electric Boiler matching and other scenarios. Choosing AIX original factory circulating pump can significantly improve boiler thermal efficiency, reduce system energy consumption, reduce fault downtime, extend equipment life, achieve safe, stable, efficient and energy-saving operation, and create higher economic benefits and market competitiveness for users.

6. Conclusion

With mature centrifugal principle, high temperature resistant structure, efficient and stable performance and original factory price advantage, AIX hot water boiler circulating pump has become the preferred equipment for hot water boiler supporting circulation system. We adhere to technological innovation, quality first and customer first, continuously optimize products and services, and provide global users with high-quality, highly adaptable and cost-effective boiler circulating pump solutions. Welcome new and old customers to visit our factory for investigation and negotiation. AIX original factory will join hands with you to win-win and create a new future of efficient heating with professional strength and honest service.
