Stainless Steel Steam Header & Tower

Stainless steel steam header and tower are core pressure vessel equipment for boiler steam distribution and chemical distillation separation. The steam header operates based on three core principles: equal pressure distribution, pressure stabilization & buffering, and steam-water separation. It realizes centralized distribution, pressure stabilization, pressure reduction and steam-water separation of boiler steam through a sealed pressure-bearing cylinder, ensuring stable pressure and uniform flow of multi-branch steam systems. The stainless steel tower operates based on the principle of counter-current gas-liquid two-phase contact + mass and heat transfer separation, realizing distillation, purification, absorption and extraction of mixed media through packing/tray structure inside the tower. As core pressure-bearing equipment for thermal systems and chemical processes certified by China Standardization Administration, AIX Boiler, as an original factory, strictly follows Standardization Administration of China standards GB150, TSG21-2016, independently controlling the whole process of design, manufacturing and testing to ensure safe, compliant, stable and durable products.

1. AIX Boiler Brand & Original Factory Core Advantages

AIX Boiler is a comprehensive pressure-bearing equipment manufacturer integrating R&D, design, production, installation, commissioning and EPC service, specializing in stainless steel steam headers, distillation towers, Heat Exchangers, storage tanks and boiler supporting equipment. We have standardized pressure vessel production workshops, certified welding and NDT teams, complete rolling, welding, pressure testing and flaw detection equipment, realizing independent production from stainless steel plate procurement and re-inspection, CNC cutting, rolling, welding, NDT, hydrostatic test, pickling passivation to finished product delivery without middlemen, providing higher cost performance and more controllable delivery time with the same quality. With years of deep cultivation in pressure-bearing equipment industry, our products have passed special equipment manufacturing license certification, complying with Class I pressure vessel safety standards, adapting to strict working conditions in thermal, chemical, pharmaceutical, food, environmental protection, HVAC and other industries, serving thousands of enterprises nationwide, winning market trust with stable quality, professional technology and perfect service, becoming a trustworthy brand manufacturer in the field of stainless steel steam headers and towers.

2. Working Principle & Structural Features

2.1 Stainless Steel Steam Header

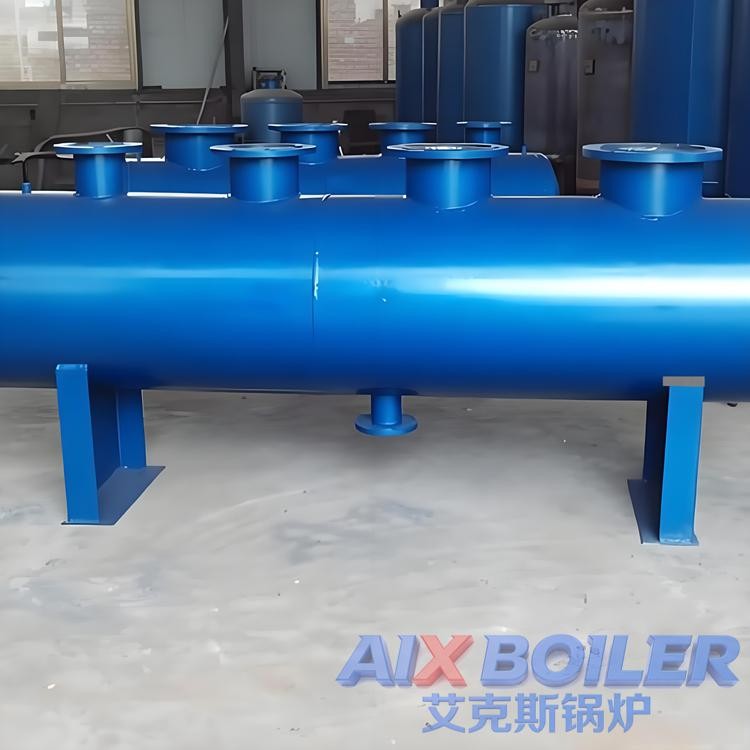

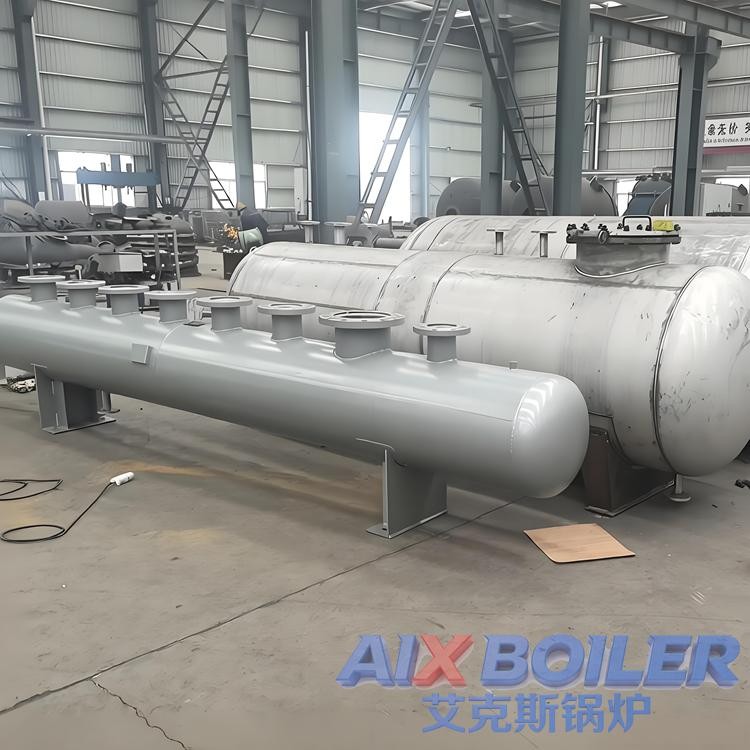

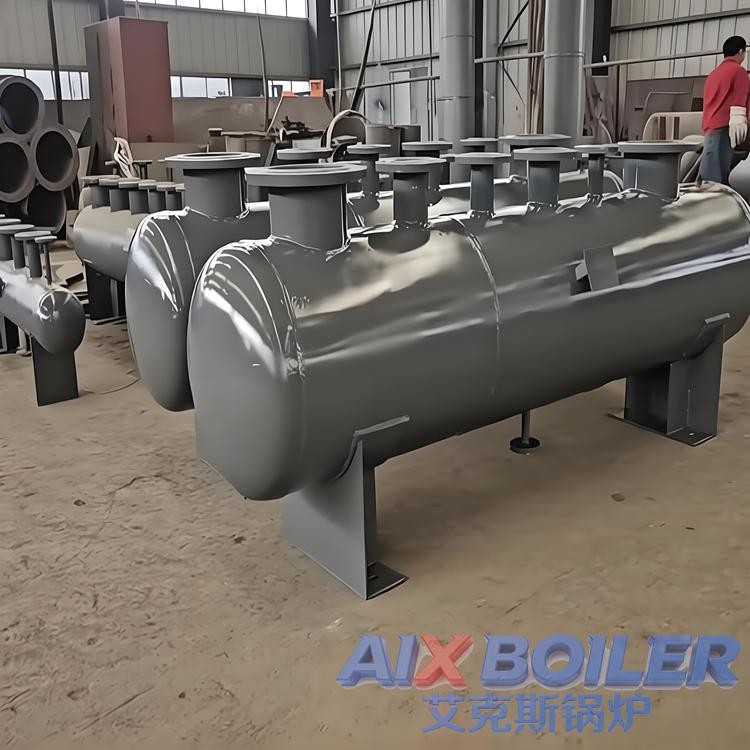

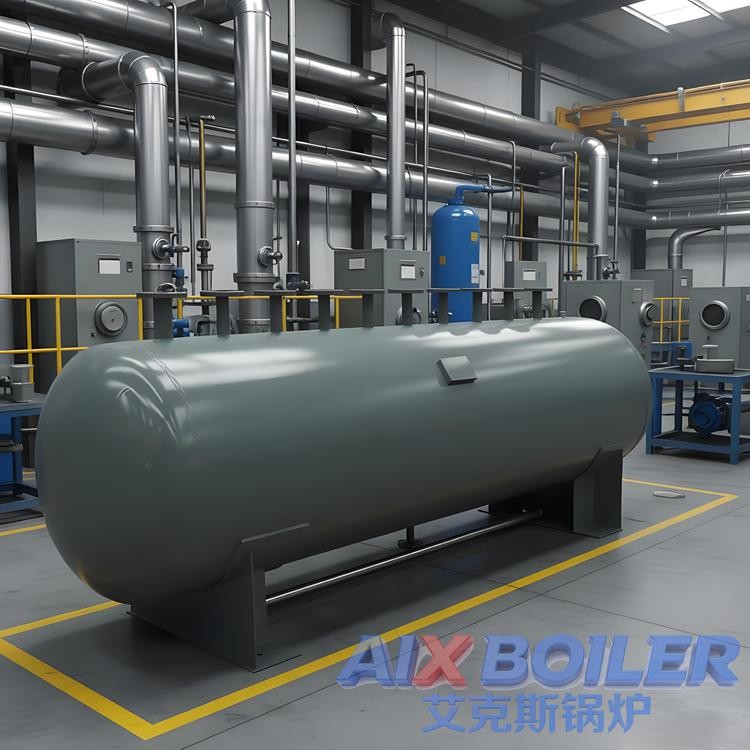

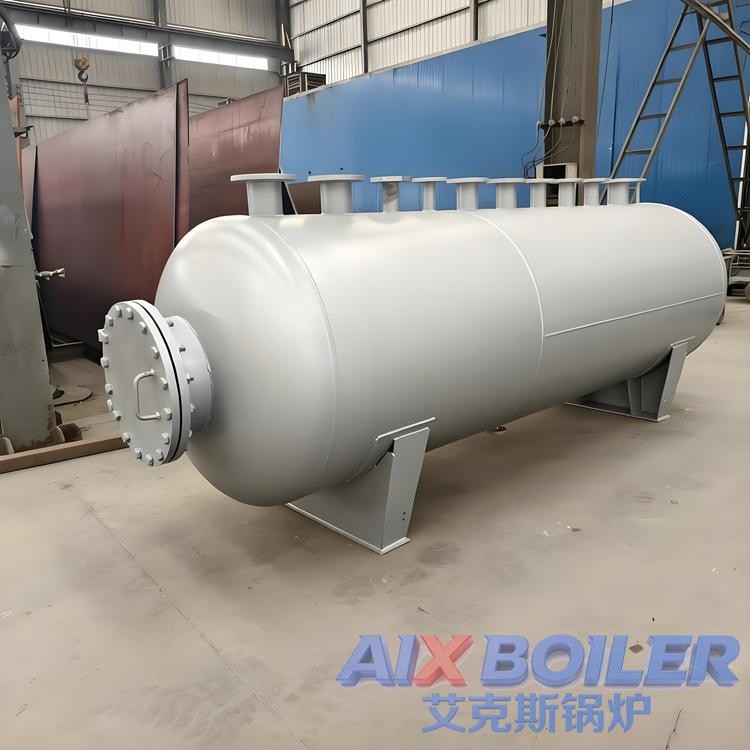

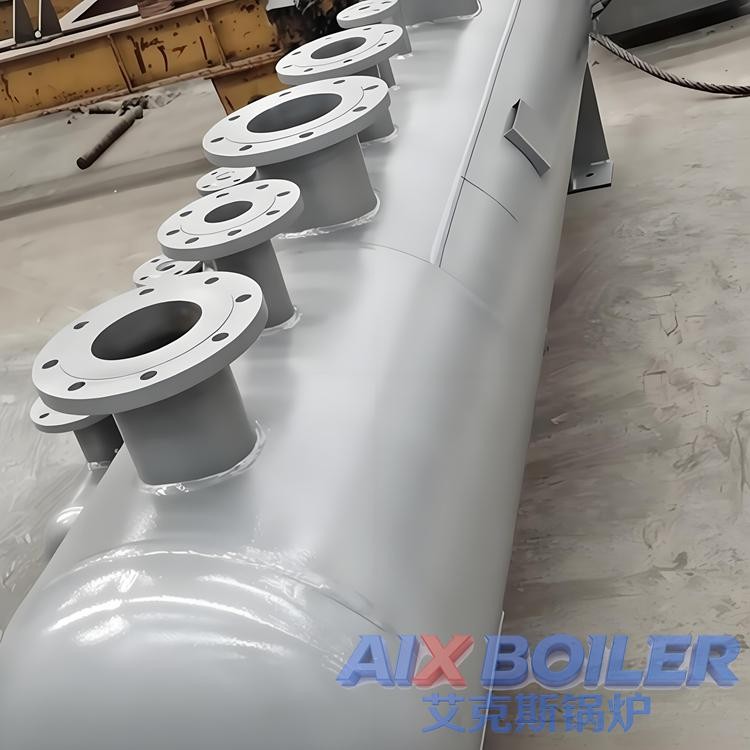

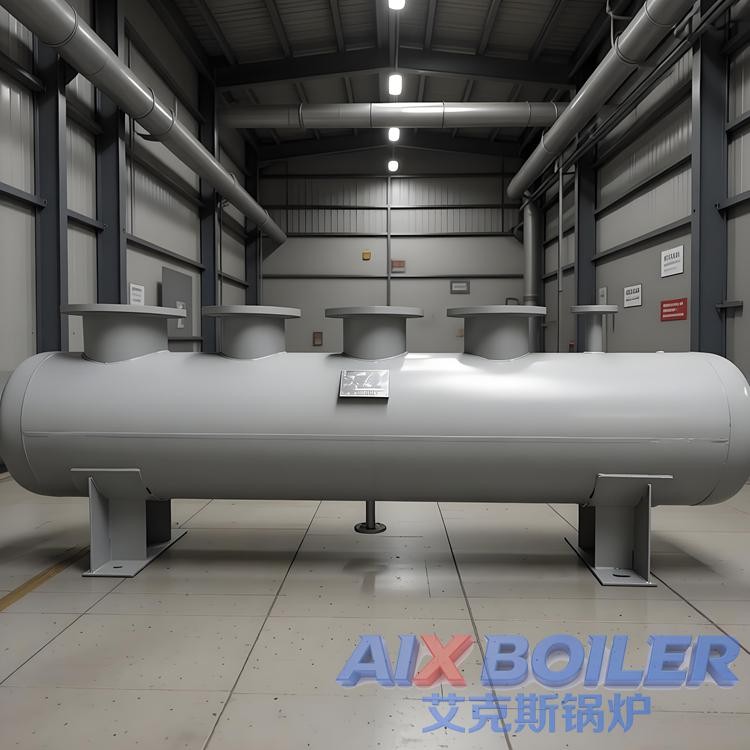

Stainless steel steam header consists of pressure-bearing cylinder, head, steam inlet, multi-way distribution outlets, drain port, exhaust port, pressure gauge interface and safety valve interface, which is the core supporting equipment of boiler steam system. After high-temperature and high-pressure steam from the boiler enters the cylinder, it realizes steam-water separation and pressure stabilization through expansion, then is evenly distributed to each steam branch through multi-way outlets. It can also realize steam pressure reduction, steam collection, sewage discharge and other functions, effectively solving the problems of pressure fluctuation, uneven flow distribution and water carry-over in the steam system, ensuring the safe and stable operation of steam equipment. AIX products are made of 304/316L stainless steel, resistant to acid, alkali and corrosion, hygienic and easy to clean, suitable for steam, clean gas, non-toxic and non-explosive media, with high structural strength, stable pressure bearing and good sealing performance.

2.2 Stainless Steel Tower

Stainless steel tower consists of cylinder, head, tray/packing layer, feed inlet, discharge outlet, gas phase port, liquid phase port, manhole and support, divided into distillation tower, absorption tower, extraction tower, scrubber and other types. Gas and liquid phases flow counter-currently in the tower, realizing separation, purification and absorption of different components in the mixed medium through mass and heat transfer of trays/packing, widely used in distillation, purification, waste gas treatment and other processes in chemical, pharmaceutical, food and other industries. AIX products are made of 304/316L stainless steel, with reasonable structure design, high mass transfer efficiency, large operation flexibility, corrosion resistance and easy maintenance. Various structures such as packing type, sieve plate type and float valve type can be customized according to process requirements.

3. Core Technical Parameters & Standards

4. Standard Model Parameter Table

5. Manufacturing Process & Quality Control

AIX Boiler implements full-process strict quality control for stainless steel steam headers and towers, with full traceability from raw materials to finished products: 1) Material control: selecting genuine 304/316L stainless steel plates with material certificates, spectral test reports and re-inspection reports, prohibiting unqualified materials from entering the factory; 2) Precision processing: CNC cutting, one-time rolling forming by plate rolling machine, cylinder roundness and straightness meet national standards, nozzle opening adopts CNC positioning with high dimensional accuracy; 3) Welding process: certified welders adopt TIG backing + SMAW capping, with beautiful weld formation, no porosity, no slag inclusion, no cracks, 100% penetrant test for key welds, and radiographic test for main welds of towers in proportion; 4) NDT: kerosene leak test after welding with no leakage, hydrostatic test and air tightness test qualified item by item, surface NDT up to Level I standard; 5) Surface treatment: internal and external pickling passivation to remove oxide layer and improve corrosion resistance, mirror polishing available for sanitary grade products; 6) Finished product acceptance: each equipment is provided with complete delivery documents, including certificate of conformity, material certificate, test report, as-built drawings and operation manual, meeting the requirements of special equipment filing and safety supervision acceptance.

6. Application Industries & Scenarios

AIX stainless steel steam headers and towers are widely used in many industries with excellent pressure bearing performance, corrosion resistance and stable operation:
1. Thermal & HVAC Industry: steam distribution, pressure stabilization, steam collection for boiler steam systems, supporting for central heating and industrial park steam pipe networks;
2. Chemical Industry: distillation, purification, absorption, extraction processes, organic solvent separation, waste gas scrubbing, wastewater stripping treatment;
3. Pharmaceutical Industry: API purification, solvent recovery, distillation refining, sterile gas distribution, complying with GMP hygiene standards;
4. Food & Beverage Industry: steam distribution, dairy purification, beverage distillation, alcohol rectification, food-grade medium separation;
5. Environmental Protection Industry: waste gas absorption tower, scrubber, VOCs treatment, wastewater stripping and purification equipment;
6. Other Industries: textile printing and dyeing, papermaking, tobacco, new energy, metallurgy and other industries' steam system supporting and medium separation processes.

7. OEM Customization & One-stop Service

As an original factory, AIX Boiler provides full-range non-standard customization and one-stop service: according to customer's medium characteristics, working pressure, temperature, flow, installation space, nozzle position, process requirements and other parameters, professional pressure vessel design engineers issue compliant design schemes and drawings; support customization of inlet/outlet quantity, diameter, pressure grade, material for steam headers, and customization of tower type, packing/tray type, tower height, internal structure for towers; optional supporting accessories such as pressure gauge, safety valve, level gauge, thermometer, drain valve, globe valve; provide one-stop on-site installation, commissioning, acceptance, personnel training and after-sales maintenance, and undertake EPC general contracting of steam systems and distillation separation systems, taking full responsibility from design, manufacturing to installation and delivery, reducing customer communication costs and project risks.

8. Core Competitiveness & Advantages

Compared with products from ordinary manufacturers, AIX Boiler stainless steel steam headers and towers have outstanding advantages: 1) Direct supply from original factory with complete qualifications, pressure vessel manufacturing license, full process compliance of design and manufacturing, passing special equipment filing and acceptance; 2) Genuine 304/316L material with traceable spectral inspection, no non-standard materials, strong corrosion resistance and long service life; 3) Exquisite welding technology, operated by certified welders, full weld NDT, no leakage hidden danger, stable pressure bearing; 4) Professional design team, non-standard customization according to working conditions, compliant scheme with strong adaptability to meet different process requirements; 5) Controllable production cycle, own production workshop, stable delivery time and higher cost performance; 6) Perfect after-sales service, lifetime technical support, timely spare parts supply and fast after-sales response; 7) Complete specifications, from small test equipment to large industrial devices, all can be customized.

9. Purchase & Cooperation Process

For purchasing stainless steel steam headers and towers, please provide the following core information: for steam headers, please provide boiler capacity, design pressure, temperature, inlet/outlet quantity and diameter, installation type, material requirements; for towers, please provide processing medium, feed composition, separation requirements, design pressure, temperature, tower diameter/height requirements, material, internal parts type, etc. Our professional engineers provide one-to-one docking, and quickly issue compliant design schemes and accurate quotations. AIX Boiler adheres to quality first and integrity management. All products are manufactured in strict accordance with national pressure vessel standards, delivered only after passing the inspection, providing long-term technical support and spare parts supply. Welcome customers to visit our factory and discuss cooperation.

AIX Boiler – Professional Original Factory of Stainless Steel Steam Headers & Towers, Building Quality with Technology, Winning Trust with Service, Providing Safe, Compliant, Durable and Cost-effective Pressure-bearing Equipment and System Total Solutions for Global Customers.
