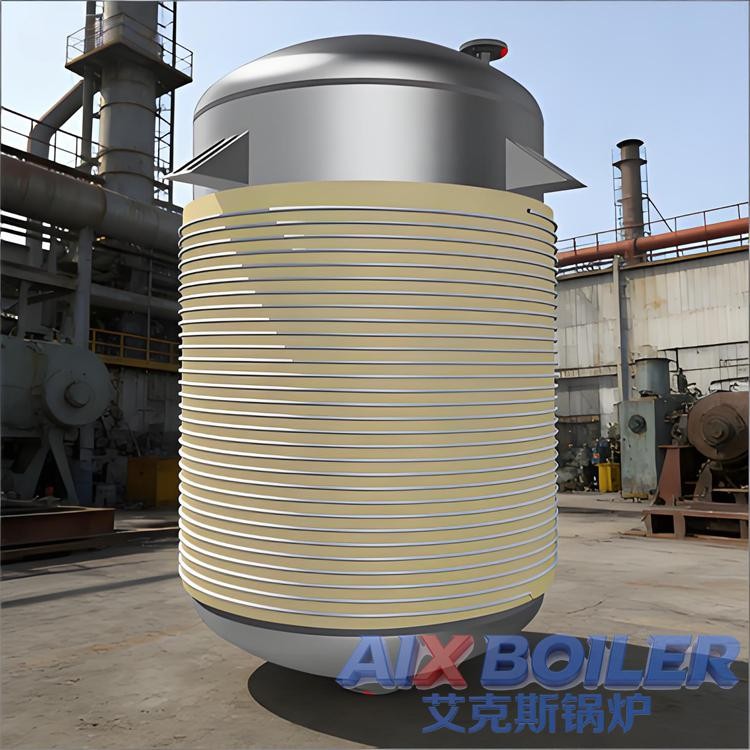

Electromagnetic Induction Heating Reactor

electromagnetic induction heating reactor is a high-efficiency and energy-saving industrial reaction equipment designed based on three core technologies: electromagnetic induction eddy current heating principle, pressure-tight closed reaction system, and intelligent precise temperature control. It generates eddy current inside the metal kettle body through alternating electromagnetic field, making the kettle body heat up quickly and uniformly by itself, directly heating the materials in the kettle. At the same time, it realizes mixing, dissolution, synthesis, polymerization, reaction and other processes under high temperature and high pressure with the closed pressure-bearing kettle structure, without intermediate heat transfer medium, fundamentally solving the industry pain points of large heat loss, low temperature control accuracy and many potential safety hazards of traditional heating methods. It is a green energy-saving pressure-bearing equipment key promoted by China Standardization Administration. As an original production factory, AIX Boiler strictly complies with GB150 pressure vessel standard and TSG21 special equipment safety technical specification of Standardization Administration of China, owns the utility model patent of electromagnetic heating reactor authorized by China National Intellectual Property Administration, and independently controls the whole process of R&D, design, manufacturing and testing to ensure product safety, compliance, stable performance and high energy efficiency.

1. AIX Boiler Brand & Original Factory Core Advantages

AIX Boiler is a comprehensive pressure-bearing equipment and thermal energy equipment manufacturer integrating R&D, design, production, installation, commissioning and EPC service, specializing in electromagnetic induction heating reactors, pressure vessels, Heat Exchangers, storage tanks and boiler supporting equipment. We have standardized pressure vessel production workshop, intelligent electromagnetic heating R&D laboratory, certified welding and NDT team, complete forming, welding, pressure testing and testing equipment, realizing independent production from stainless steel/carbon steel plate procurement and re-inspection, CNC cutting, rolling, welding, NDT, electromagnetic coil assembly, intelligent control system commissioning, hydrostatic test to finished product delivery without middlemen, providing higher cost performance and more controllable delivery time with the same quality. With years of deep cultivation in thermal energy and pressure-bearing equipment industry, we have special equipment manufacturing license, our products have passed many authoritative tests, complying with Class I pressure vessel safety standards, adapting to strict working conditions in chemical, pharmaceutical, food, new material, new energy and other industries, serving thousands of enterprises nationwide, winning market trust with stable product quality, professional technical R&D and perfect after-sales service, becoming a trustworthy brand manufacturer in the field of electromagnetic induction heating reactors.

2. Working Principle & Structural Composition

2.1 Core Working Principle

Based on Faraday's law of electromagnetic induction, the equipment converts power frequency AC into high-frequency alternating current through the intelligent control system. The high-frequency current flows through the induction coil to generate an alternating magnetic field. When the magnetic lines of force pass through the metal kettle body, countless annular eddy currents are generated in the wall of the kettle body. The eddy currents make the iron molecules of the kettle body move at high speed irregularly, and the molecules collide and rub against each other to generate heat energy, realizing the overall uniform heating of the kettle body itself, directly heating the materials in the kettle without intermediate heat transfer medium such as boiler or heat transfer oil. The conversion efficiency of electric energy to heat energy can reach more than 95%. At the same time, with the intelligent PID temperature control system, it monitors the temperature in the kettle in real time, accurately adjusts the output power, realizes the temperature control accuracy of ±1℃, and meets the process requirements of various fine chemical reactions.

2.2 Equipment Structural Composition

AIX electromagnetic induction heating reactor is mainly composed of five parts: pressure-bearing kettle body system, electromagnetic induction heating system, intelligent control system, sealing transmission system and supporting accessories:
① Pressure-bearing kettle body system: including cylinder, head, kettle cover, jacket (optional), manhole, feed inlet, discharge outlet, temperature measuring port, etc. The material can be 304/316L stainless steel, Q245R carbon steel, enamel lined, etc. It is a Class I pressure vessel, complying with GB150 standard;
② Electromagnetic induction heating system: including high-frequency induction coil, thermal insulation layer, high-frequency power cabinet. The coil is installed in non-contact with the kettle body, no mechanical wear, service life more than 10 years;
③ Intelligent control system: adopts PLC+PID intelligent temperature control, supports multi-stage program heating, constant temperature and cooling control, equipped with touch screen, over-temperature protection, over-pressure protection, leakage protection and other multiple safety functions, which can realize fully automatic unattended operation;
④ Sealing transmission system: optional mechanical seal, magnetic seal, suitable for atmospheric pressure, negative pressure and high pressure working conditions, meeting the process requirements of stirring, dispersing, emulsifying, etc.;
⑤ Supporting accessories: customizable stirring device, temperature measuring tube, pressure gauge, safety valve, sight glass, sampling port, etc., to meet different process requirements.

3. Core Technical Parameters & Standards

4. 2000L Standard Model Technical Parameters

5. Comprehensive Performance Comparison with Traditional Heating Methods

6. Core Product Advantages

6.1 Ultra-high Efficiency & Energy Saving, Greatly Reduce Operating Cost

AIX electromagnetic induction heating reactor realizes direct conversion of electric energy to heat energy, with thermal efficiency exceeding 95%. It saves 30%-50% energy compared with steam heating and 20%-40% energy compared with thermal oil heating. Taking the medium-sized 2000L reactor as an example, the annual operating cost can be saved by hundreds of thousands of RMB, and the equipment investment cost can be recovered in 1-3 years. No need for supporting equipment such as boiler, heat transfer oil furnace, circulation pump and pipeline, greatly reducing the early infrastructure investment and later maintenance cost.

6.2 Precise Intelligent Temperature Control, Improve Product Quality & Yield

Adopting industrial PLC+PID intelligent temperature control system, the temperature control accuracy can reach ±1℃, supporting multi-stage program heating, constant temperature and cooling curve setting, perfectly adapting to the process requirements sensitive to temperature such as fine chemical industry, pharmaceutical intermediates, new material synthesis, solving the pain points of large temperature fluctuation and strong hysteresis of traditional heating methods, and increasing the product yield by 5%-15%. At the same time, it supports data storage, historical curve query, remote communication and unattended operation, realizing digital management of the production process.

6.3 Intrinsic Safety & Environmental Protection, Eliminate Traditional Production Risks

The equipment does not need high-pressure boiler and flammable heat transfer oil, fundamentally avoiding the major safety hazards of steam explosion and fire caused by heat transfer oil leakage; equipped with multiple safety protection functions such as over-temperature, over-pressure, leakage, short circuit and water shortage, realizing the whole process safety closed-loop control. No waste gas, residue and waste water discharge during production, no heat transfer oil volatilization pollution, complying with ISO14001 environmental protection standard and green factory certification requirements, helping enterprises reduce carbon emissions by more than 30%. At the same time, the outer wall of the kettle is only below 50℃, completely improving the high temperature and high noise workshop environment caused by traditional heating methods, and ensuring the occupational health of workers.

6.4 Stable & Durable Structure, Extremely Low Maintenance Cost

Adopting modular design, the electromagnetic induction coil is installed in non-contact with the kettle body, no mechanical friction, no wearing parts, service life more than 10 years; no need to regularly clean boiler scale, replace heat transfer oil, clean oil circuit carbon deposit, only daily routine inspection is needed, the annual maintenance cost is less than 1/5 of the traditional heating system, greatly reducing the downtime maintenance time and improving production continuity. At the same time, the equipment has a compact structure, no need for supporting sites such as boiler room and oil storage room, greatly saving the workshop floor area.

6.5 Full Scene Customization, Meet Diversified Process Requirements

As an original factory, AIX Boiler provides full-dimensional non-standard customization according to customer process requirements: full coverage of volume 50L-50000L, material optional 304/316L stainless steel, carbon steel, enamel lined, PTFE lined, suitable for atmospheric pressure, negative pressure, high pressure working conditions, can be matched with stirring, dispersing, emulsifying, distillation, reflux, condensation and other functional modules. At the same time, we can customize the equipment structure and installation form according to the customer's on-site power supply conditions and workshop layout, perfectly adapting to various production scenarios.

7. Typical Application Scenarios

With the characteristics of high efficiency, energy saving, precise temperature control, safety and environmental protection, AIX electromagnetic induction heating reactor is widely used in the core production links of many industries:
1. Chemical Industry: polymerization, condensation, sulfonation, nitration reaction of organic synthesis, inorganic chemical, resin, adhesive, coating, dye, auxiliaries and other products;
2. Pharmaceutical Industry: API, pharmaceutical intermediates, biological agents, traditional Chinese medicine extraction and other production processes, meeting GMP clean workshop standards;
3. Food Industry: edible oil refining, food additives, condiments, dairy products, beverage concentration and other processes, complying with HACCP food safety certification requirements;
4. New Material Industry: synthesis and sintering of lithium battery cathode and anode materials, polymer materials, nano materials, carbon fiber, composite materials;
5. New Energy Industry: preparation and reaction of electrolyte, photovoltaic materials, hydrogen energy related materials;
6. Environmental Protection Industry: wastewater treatment, sludge drying, waste gas absorption, hazardous waste disposal and other processes.

8. OEM Customization & One-stop Service

As an original factory, AIX Boiler provides customers with full-process one-stop service:
1. Pre-sales Technical Docking: professional engineers one-to-one communication, according to customer material characteristics, process parameters, capacity demand, site conditions to issue customized design scheme and accurate quotation;
2. Compliant Design & Manufacturing: with pressure vessel design and manufacturing qualification, strictly design and manufacture in accordance with GB150, TSG21 and other national specifications, can provide pressure vessel supervision certificate;
3. Production & Quality Control: full-process independent production, full traceability of key processes, each equipment has undergone strict hydrostatic test, air tightness test, electrical safety test and no-load test run before delivery;
4. On-site Installation & Commissioning: professional technical team provides on-site installation, commissioning and personnel operation training services to ensure the smooth commissioning of the equipment;
5. Lifetime After-sales Service: 12 months warranty for the whole machine, 3 years warranty for the core electromagnetic system, lifetime technical support and spare parts supply, 24-hour after-sales response to solve customer worries;
6. EPC Service: can undertake EPC general contracting of reactor system and production line, taking full responsibility from scheme design, equipment manufacturing, installation and commissioning to production delivery, reducing customer project cost and management difficulty.

9. Purchase Instruction & Cooperation Process

For purchasing electromagnetic induction heating reactors, please provide the following core process parameters: material name and characteristics, design pressure, design temperature, required volume, material requirements, mixing form and power, heating power demand, temperature control accuracy requirements, nozzle configuration, on-site power supply conditions, etc. Our professional engineers will quickly issue a compliant design scheme and accurate quotation for you. AIX Boiler adheres to quality first and integrity management. All products are manufactured in strict accordance with national pressure vessel standards and delivered only after passing the inspection. We have independent intellectual property patent technology. Welcome customers to visit our factory and discuss cooperation.
