Insulated Water Tank

AIX Boiler is a professional source factory of industrial equipment, specializing in stainless steel insulated water tanks and pressure insulated water tanks with strong thermal insulation performance, corrosion resistance and long service life. We support non-standard customization and direct factory supply, suitable for boiler matching, chemical industry, water supply and other scenarios.

The Aikes boiler insulated water tank operates based on the core principles of stainless steel sealed water storage, polyurethane closed-cell foam insulation, double-layer structure for constant temperature and energy saving, and pressure-resistant structure for stable operation. The equipment uses food-grade 304/316L stainless steel as the inner tank, a galvanized/stainless steel outer protective layer, and a high-density polyurethane integral foam insulation layer in between, forming a three-layer thermal structure that effectively reduces heat loss and maintains constant water temperature for 24 hours. Designed and manufactured in accordance with pressure vessel and water supply equipment specifications, the structure includes an inner tank, outer shell, insulation layer, water inlet/outlet, drain port, overflow port, level gauge port, flange connections, supports, etc. It features excellent thermal insulation, corrosion resistance, no rust, no secondary pollution, stable pressure resistance, and easy installation. This product strictly adheres to GB/T 17219 "Safety evaluation standard for drinking water distribution equipment and protective materials" and GB/T 3280 "Cold-rolled stainless steel sheets and strips". It undergoes four quality control tests: hydrostatic test, air tightness test, insulation performance test, and weld nondestructive testing, achieving a 100% factory acceptance rate. As a self-branded product of the Aikes Boiler original factory, it is fully produced in-house with no middlemen markup. It supports comprehensive non-standard customization for volume (0.5m³ to 200m³), thickness, insulation layer, and pressure rating. Widely used in industrial production, HVAC, hot water engineering, hotel water supply, photovoltaic energy storage, fire water supply, and other industries, it is the core equipment for modern industrial constant-temperature water storage.

1. Basic Parameters

Item	Specification	Standard	Description
Brand	Aikes Boiler	Original Factory	Self-developed and manufactured

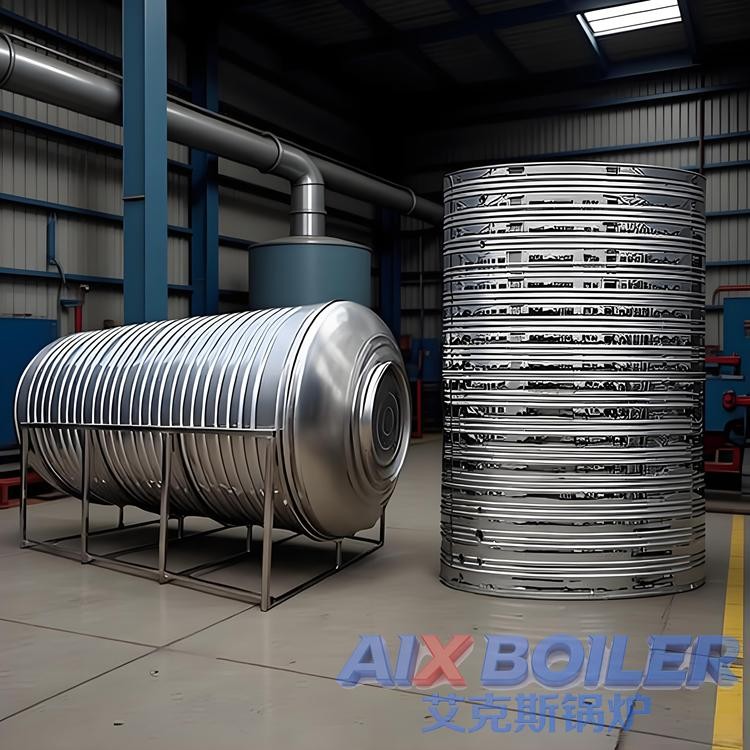

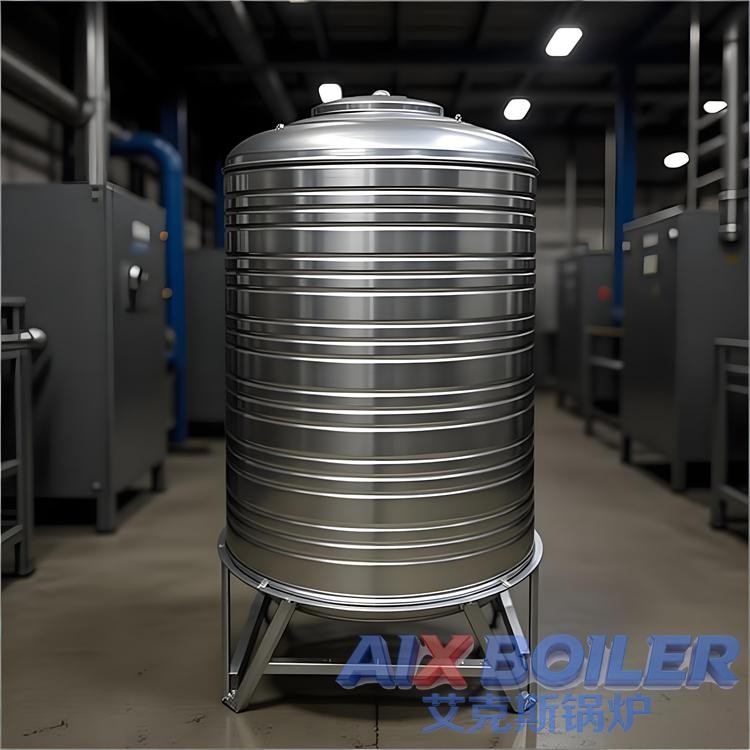

Equipment Type	Vertical/Horizontal Insulated Water Tank	Enterprise Standard	Atmospheric / Pressure optional
Inner Tank Material	304 / 316L Food-grade Stainless Steel	GB/T 3280	Corrosion-resistant, no secondary pollution
Insulation Material	High-density Polyurethane Foam	Enterprise Standard	Closed-cell structure, strong thermal retention

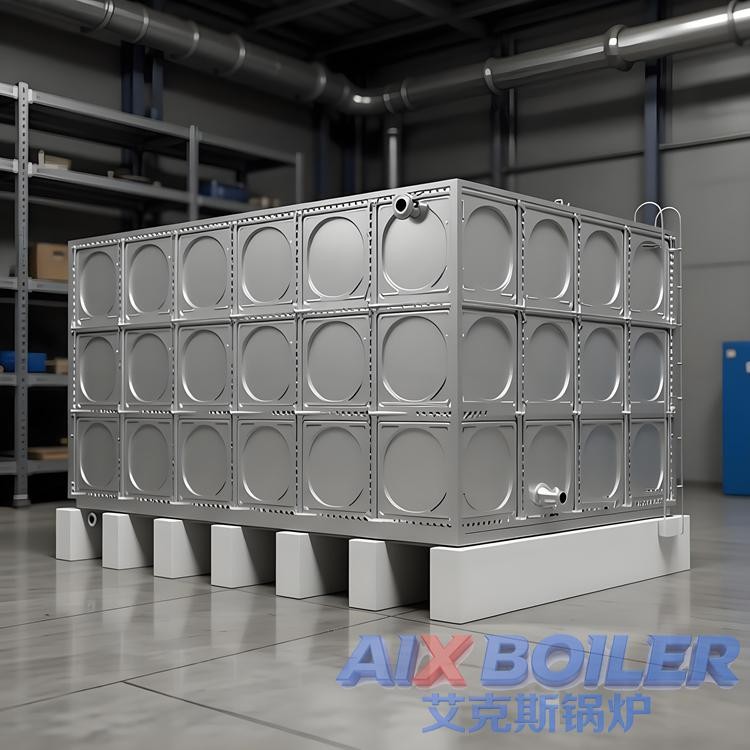

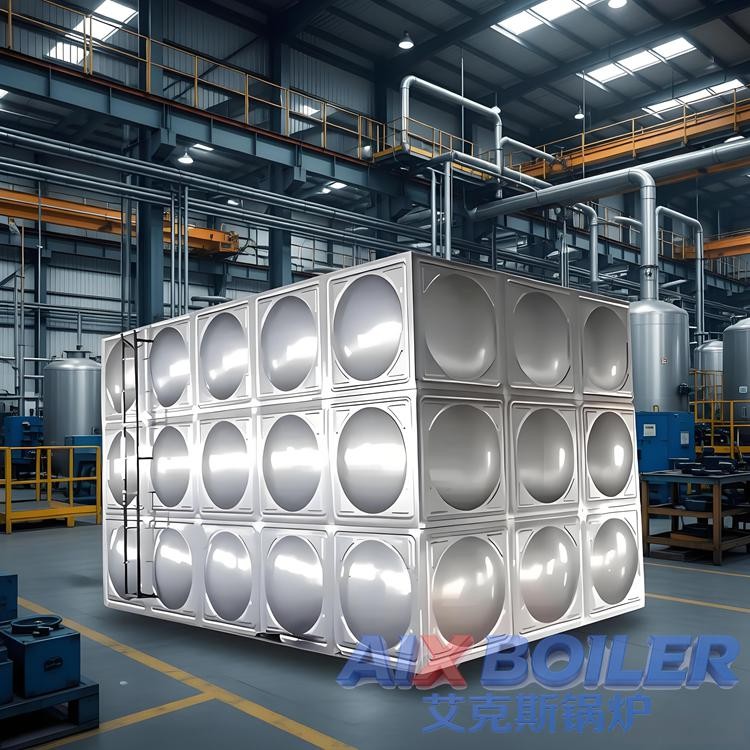

Volume Range	0.5m³ ~ 200m³	Customizable	Square/round shapes available
Design Pressure	Atmospheric ~ 1.0MPa	GB/T 150	Pressure-rated models customizable
Temperature Range	-20℃ ~ 120℃	Enterprise Standard	Suitable for cold/hot water
Insulation Thickness	50mm ~ 100mm	Enterprise Standard	Customizable thickness

2. Material Performance Comparison

Material	Corrosion Resistance	Temperature Range	Suitable Media	Applicable Industries
304 Stainless Steel Inner Tank	Excellent, Food-grade	-20℃ ~ 120℃	Tap water, hot water, softened water	Civil, HVAC, hot water projects
316L Stainless Steel Inner Tank	Superior, Chloride-resistant	-20℃ ~ 120℃	Groundwater, industrial circulating water	Industrial, chemical, photovoltaic
Galvanized Outer Shell	Rust-resistant, Cost-effective	-20℃ ~ 80℃	Outdoor protection, standard conditions	General water supply projects

3. Insulation Layer Performance Indicators

Parameter	Standard Requirement	Aikes Measured Value	Test Method
Thermal Conductivity	≤0.024W/(m·K)	≤0.022W/(m·K)	GB/T 10294
Closed Cell Ratio	≥90%	≥95%	GB/T 8810
24h Temperature Drop	≤5℃	≤3℃	Enterprise constant temperature test
Compressive Strength	≥150KPa	≥200KPa	GB/T 8813
Service Life	≥10 years	≥15 years	Aging test

4. Structural Components and Functions

Component	Type	Core Function
Inner Tank	304/316L Stainless Steel	Water storage chamber, anti-corrosion, anti-fouling
Insulation Layer	Integral Polyurethane Foam	Thermal retention, reduces heat loss
Outer Shell	Stainless Steel/Galvanized Sheet	Protects insulation, durable and aesthetic
Water Inlet/Outlet	DN25 ~ DN150	Water circulation, customizable
Drain Port	DN40 ~ DN80	Regular draining, cleans inner tank
Supports	Channel steel/Angle steel bracket	Stable load bearing, easy installation
Level Device	Float/Electronic level gauge	Real-time water level monitoring

5. Suitable and Prohibited Media

Media Type	Suitable Media	Prohibited Media	Precautions
Drinking Water	Tap water, purified water, softened water	Strong acids/bases, highly corrosive liquids	Regular cleaning and disinfection
Hot Water	Heating hot water, domestic hot water	Direct high-temperature steam injection	Temperature ≤100℃
Industrial Water	Circulating water, cooling water, reclaimed water	Oily wastewater, strong oxidants	Filtration device recommended
Fire Water	Ambient temperature fire water supply	Unprotected freezing low temperature	Add anti-freeze protection outdoors

6. Testing Standards and Acceptance

Test Item	Standard	Acceptance Requirement
Hydrostatic Test	GB/T 150	No leakage, no deformation
Weld Nondestructive Testing	GB/T 3323	No porosity, no cracks
Insulation Performance Test	Enterprise Standard	24h temperature drop ≤3℃
Sealing Test	GB/T 17219	No leakage, stable pressure retention
Appearance Quality	Enterprise Standard	Smooth, flat, no dents

7. Common Size Reference

Volume	Diameter (mm)	Height (mm)	Application Scenario
1m³	1000	1300	Small residences, shops
5m³	1800	2000	Hotels, small factories
10m³	2200	2600	Schools, hospitals, HVAC projects
30m³	3000	4200	Industrial parks, large hot water projects
50m³	3500	5200	Industrial production, photovoltaic energy storage

8. Aikes Boiler Original Factory Advantages

Item	Aikes Boiler	Ordinary Manufacturers
Production Mode	Original factory, full in-house	OEM / assembled from parts
Foaming Process	High-pressure integral foaming, no voids	Manual filling, poor insulation
Material Quality	Genuine stainless steel with mill certificate	Non-standard thin material, prone to rust
Testing Standards	Four tests, 100% pressure tested	No testing, high leakage rate
Customization	Full customization (size/pressure/insulation)	Standard stock models only
After-sales Service	12-month warranty, 7×24h support	No after-sales, no warranty

9. Product Structure and Core Advantages

The Aikes boiler insulated water tank adopts a vertical/horizontal three-layer sealed structure, consisting of a food-grade stainless steel inner tank, polyurethane insulation layer, and metal outer shell. Welds are made using argon arc welding, ensuring no leakage or cracking, with strong overall sealing. High-density polyurethane integral foaming provides a high closed-cell ratio and low thermal conductivity, maintaining constant temperature for 24 hours and improving energy efficiency by 40% compared to ordinary tanks. The inner tank is mirror-polished, preventing scaling and bacterial growth, meeting drinking water hygiene standards with no secondary pollution. The equipment can be customized for atmospheric or pressure applications, suitable for various indoor and outdoor installation environments, with a service life of over 15 years.

As an original factory of insulated water tanks, Aikes Boiler has an integrated production line including CNC shearing, bending, welding, and foaming, with a professional quality control team ensuring each tank is pressure-tested before delivery. We offer free solution design, on-site measurement, installation guidance, operation training, 12-month warranty, and lifetime maintenance, fully guaranteeing the stable operation of your water supply system.

10. Applicable Industries & Services

Aikes boiler insulated water tanks are widely used in industrial production, HVAC, air-source heat pump hot water projects, solar hot water systems, hotel and school water supply, hospital pure water, photovoltaic energy storage, fire pressure stabilization, circulating cooling water, and other fields. They are suitable for cold water storage, hot water constant temperature, water supply buffering, pressure stabilization and replenishment, and more. Meeting the water storage needs of civil, commercial, and industrial scenarios, they are core supporting equipment for energy-saving water supply systems.

We provide one-stop custom services: free design, production on demand, strict pressure testing, dedicated delivery, on-site installation, and lifetime maintenance. Choose Aikes boiler insulated water tank for an energy-saving, environmentally friendly, and durable constant-temperature water storage solution!

Choose Aikes Boiler, choose original factory quality! Welcome to inquire about customization and visit our factory!
