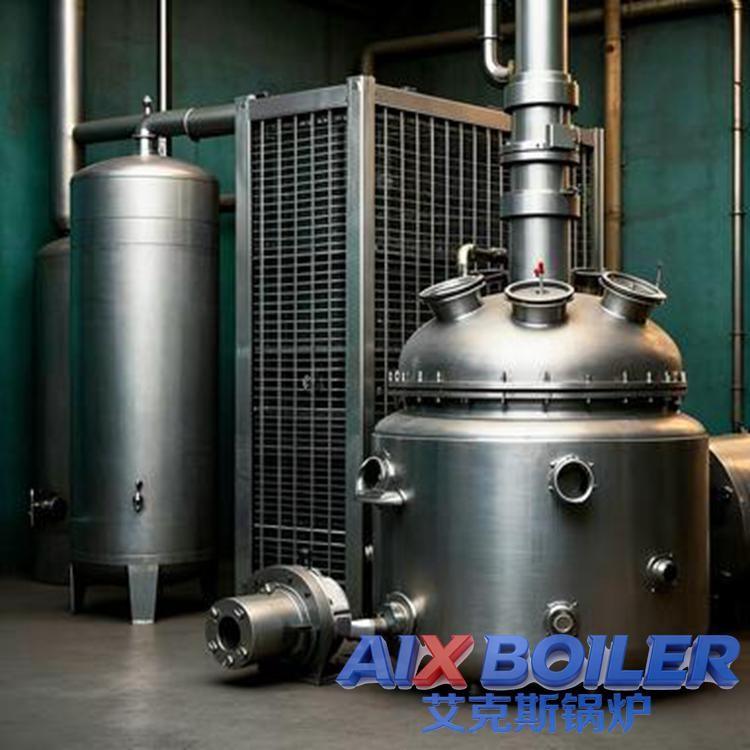

Stainless Steel Closed Reaction Kettle

Aix Boiler stainless steel closed reaction kettle operates based on the principle of closed pressure reaction, jacket/coil heat exchange and mechanical stirring mixing. In a fully closed stainless steel kettle body, it provides a stable and controllable reaction environment for materials by precisely controlling temperature, pressure, stirring speed and feeding sequence, completing various chemical reactions and processes such as polymerization, condensation, vulcanization, nitration, hydrogenation, neutralization, crystallization and distillation. The kettle body is made of high-quality 304/316L stainless steel, with mechanical seal to realize closed and leak-free operation in the whole process. The heating/cooling system realizes rapid heat exchange through jacket or internal coil, and the stirring system makes material mixing more uniform. The whole kettle is designed and manufactured in strict accordance with the standards of China Boiler and Boiler Water Treatment Association, GB/T 150 Pressure Vessels and TSG 21-2016 *Supervision Regulation on Safety Technology for Stationary Pressure Vessels*, featuring safe pressure resistance, corrosion resistance, hygiene and stable operation. As the core chemical equipment of Aix Boiler brand, this product is independently developed, produced and inspected by the original factory with full-chain quality control. The structure, material, heating method and stirring form can be customized, providing standardized and customized reaction vessels for chemical, pharmaceutical, food, coating, new materials, scientific research and other fields to meet process scenarios with high temperature, high pressure, strong corrosion and high hygiene requirements.

1. Core Product Parameters (Aix Stainless Steel Closed Reaction Kettle)

2. Working Principle & Technical Core

Aix stainless steel closed reaction kettle consists of eight core parts: kettle body, kettle cover, jacket/coil heat exchange system, stirring system, sealing system, transmission system, support legs and inlet/outlet pipeline system, belonging to typical closed pressure reaction equipment. During operation, materials enter the closed kettle from the feed port, and valves are closed to form a closed reaction space. The stirring motor drives the stirring paddle to rotate, making materials fully mixed and dispersed, eliminating concentration difference and local overheating. The heat exchange system feeds steam, heat transfer oil, cooling water or frozen brine through the jacket or internal coil to precisely control the reaction temperature. The pressure system maintains stable pressure in the kettle through pressure gauge, safety valve and vent valve, automatic pressure relief when overpressure, vacuum for negative pressure. Mechanical seal ensures no leakage during stirring shaft rotation, especially suitable for toxic, flammable, explosive and volatile materials. The equipment can be equipped with PLC intelligent control system to realize automatic control of temperature, pressure, speed, feeding and discharging, meeting high-precision, automatic and continuous production requirements.

3. Core Features & Original Factory Advantages

Fully Closed Structure, Safer Without Leakage
Closed structure + mechanical seal double guarantee, realize completely closed operation, eliminate material leakage, volatilization and pollution, suitable for toxic, harmful, flammable, explosive and strong corrosive media, higher safety level.

High-Quality Stainless Steel, Corrosion Resistant & Long Life
Adopt 304/316L food/chemical grade stainless steel, mirror polishing, smooth inner wall without dead angle, easy to clean, non-sticky, non-polluting, acid and alkali resistant, high temperature resistant, anti-fatigue, service life far exceeds ordinary carbon steel equipment.

Efficient Heat Exchange, Precise Temperature Control
Jacket/internal coil/external half-pipe optional, large heat transfer area, fast heat exchange speed, with PID temperature control system, temperature control accuracy up to ±1℃, meeting strict process temperature requirements.

Various Stirring Types, More Uniform Mixing
Paddle, anchor, frame, helical ribbon, turbine, high-shear dispersion and other stirring forms, suitable for low viscosity to high viscosity, suspension, paste, granular materials, uniform stirring without dead angle, improving reaction efficiency and product consistency.

Pressure Compliance, Multiple Safety Protections
Designed and manufactured in strict accordance with pressure vessel standards, equipped with safety valve, rupture disc, pressure gauge, liquid level gauge, temperature sensor, emergency pressure relief device, in line with special equipment specifications, passed hydrostatic test and air tightness test, safer operation.

Hygienic & Clean, Suitable for Food & Pharmaceutical
All stainless steel mirror polishing, no weld residue, no bacteria breeding, in line with GMP food and drug hygiene requirements, CIP online cleaning and SIP sterilization available, suitable for food, biomedicine, health products and other high hygiene scenarios.

Strong Customization Ability of Original Factory
Aix Boiler independent R&D and production, can customize volume, pressure, temperature, material, heating method, stirring form, explosion-proof grade, automation degree according to customer process, provide one-stop reaction kettle solution.

4. Application Scenarios & Industry Solutions

Aix stainless steel closed reaction kettle is widely used in the following industries and processes:

• Chemical Industry: Polymerization, condensation, vulcanization, nitration, hydrogenation, oxidation, reduction, alkylation, saponification, sulfonation, chlorination

• Pharmaceutical Industry: Intermediate synthesis, API reaction, extraction, crystallization, distillation, concentration, purification, GMP workshop reaction

• Food Industry: Mixing, reaction, emulsification, sterilization of sauces, beverages, health products, dairy products, condiments

• Coating & Ink: Resin synthesis, emulsion polymerization, glue, hot melt adhesive, paint, ink reaction production

• New Materials: Polymer materials, nanomaterials, composite materials, rubber, silica gel, adhesive synthesis

• Research Institutes: Laboratory reaction, pilot test, high temperature and high pressure reaction, catalyst experiment, constant temperature reaction

• Petroleum & Daily Chemical: Detergent, cosmetics, lubricating oil, additive, surfactant synthesis and mixing

5. Manufacturing Process & Quality Compliance

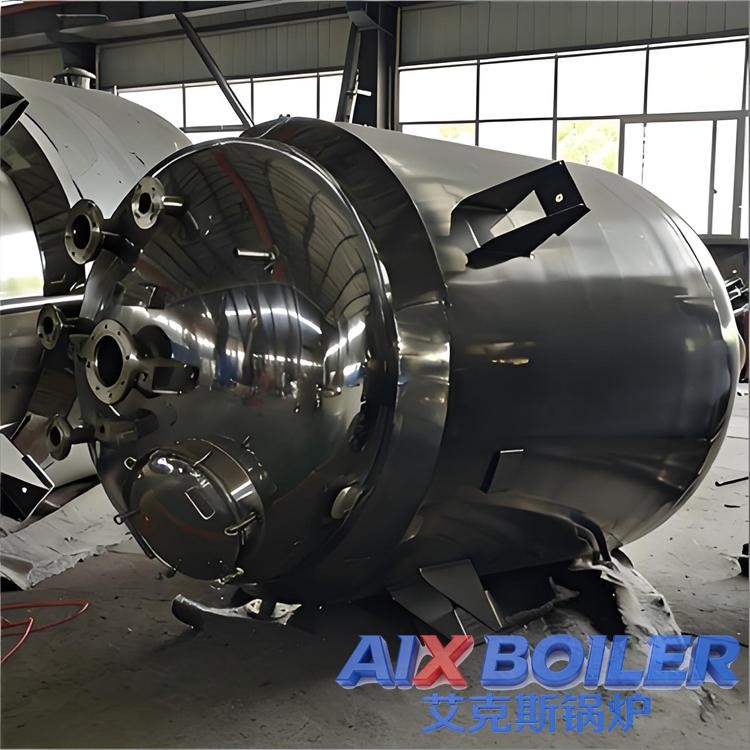

Aix stainless steel closed reaction kettle adheres to lean manufacturing in original factory, strictly implements GB/T 150 *Pressure Vessels*, TSG 21-2016 *Supervision Regulation on Safety Technology for Stationary Pressure Vessels*, GB/T 3280-2015 *Stainless Steel Cold Rolled Plates and Strips* standards: kettle body rolled and welded with high-quality stainless steel plate, welds treated by X-ray flaw detection, pickling passivation and mirror polishing; head adopts standard elliptical head with uniform pressure; jacket/coil welded by argon arc welding, no leakage; stirring system corrected by dynamic balance, stable operation without vibration; mechanical seal adopts high-quality alloy ring, wear-resistant, high temperature resistant, long life and zero leakage. Each equipment undergoes hydrostatic strength test, air tightness test, sealing test and no-load operation test before delivery, complete qualifications including pressure vessel certificate, material report, test report and operation manual available, smooth acceptance and safety supervision inspection.

6. Operation, Maintenance & After-sales Service

Check seal, instruments and valves before operation to ensure no abnormality; prohibit over-temperature, over-pressure and overload during operation; clean kettle body and pipeline in time after shutdown to avoid material scaling and corrosion; regularly check mechanical seal, stirring shaft, bearing and heat exchange pipeline to maintain good condition. As the original factory of stainless steel closed reaction kettles, Aix Boiler provides free scheme design, on-site mapping, installation and commissioning, operation training, 12-month warranty, lifelong maintenance, fast spare parts supply and other one-stop services, professional team quickly responds to faults and technical problems, making users worry-free throughout the process.

Choose Aix stainless steel closed reaction kettle, choose safe, efficient, clean and durable modern industrial reaction equipment. Welcome new and old customers to consult customization and on-site inspection!
