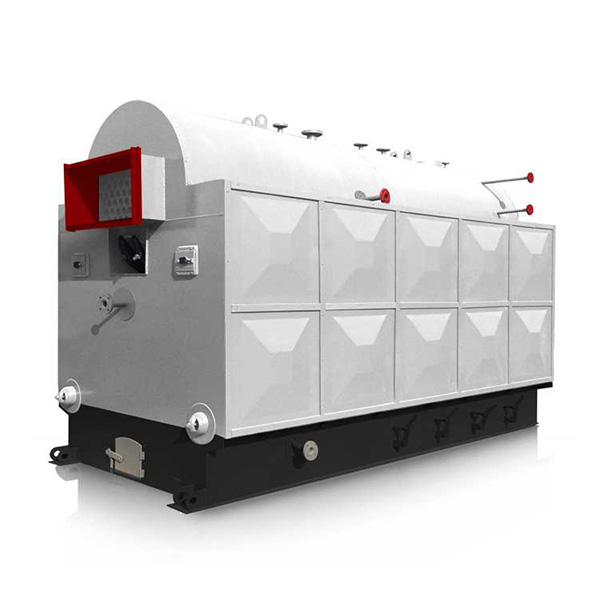

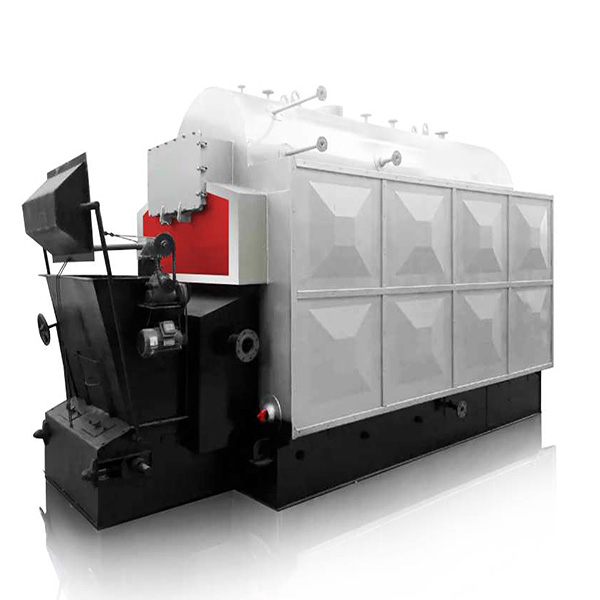

Coal & Biomass Fired Steam Boiler

Aix Boiler coal & Biomass fired steam boiler operates based on the principle of layer combustion + three-pass fire-water tube heat exchange. Using coal, biomass pellets, sawdust, straw, rice husk, etc. as fuel, the fuel is fed into the furnace layer by layer through the grate and fully burned under slight positive pressure to release heat. High-temperature flue gas undergoes furnace radiation heat exchange, threaded smoke tube convection heat exchange and economizer waste heat recovery in turn, efficiently transferring heat to boiler water to produce saturated steam. The boiler is designed and manufactured in strict accordance with the standards of China Boiler and Boiler Water Treatment Association, GB/T 44906-2024 Technical Specifications for Biomass Boilers and TSG 11-2020 Boiler Safety Technology Regulation, with thermal efficiency up to 88%–92%, wide fuel adaptability, low operating cost and high stability. As a classic industrial steam equipment of Aix Boiler brand, this product is independently developed, produced and inspected by the original factory with full-chain quality control. Adopting horizontal fast-assembly structure, automatic feeding, automatic slag removal and intelligent temperature control technology, it is specially designed for food, chemical, textile, paper making, building materials, brewing, central heating and other scenarios requiring stable low-cost steam, meeting the continuous production steam demand of various enterprises and helping them reduce operating costs and improve production benefits.

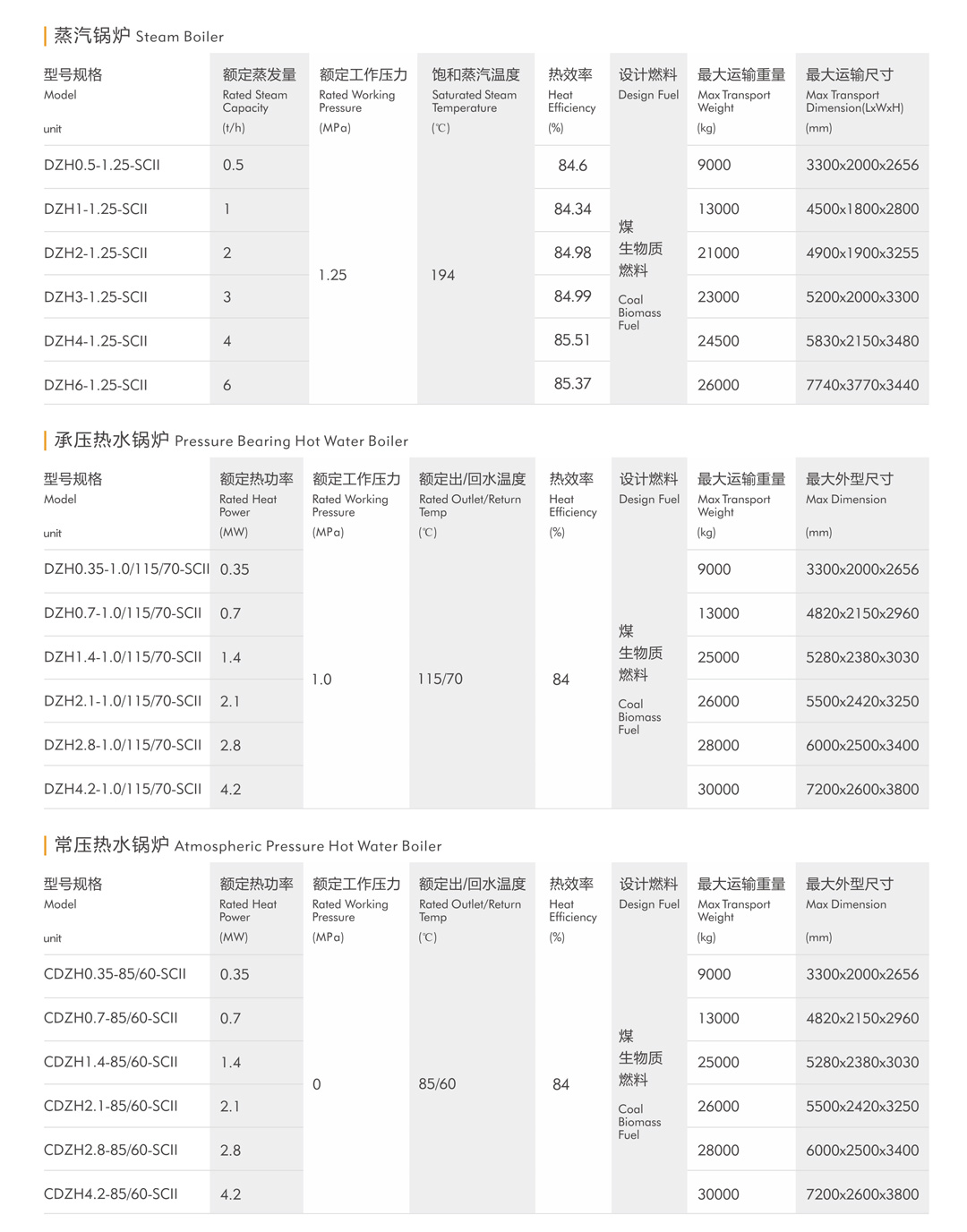

1. Core Product Parameters (Aix Coal & Biomass Fired Steam Boiler)

2. Working Principle & Technical Core

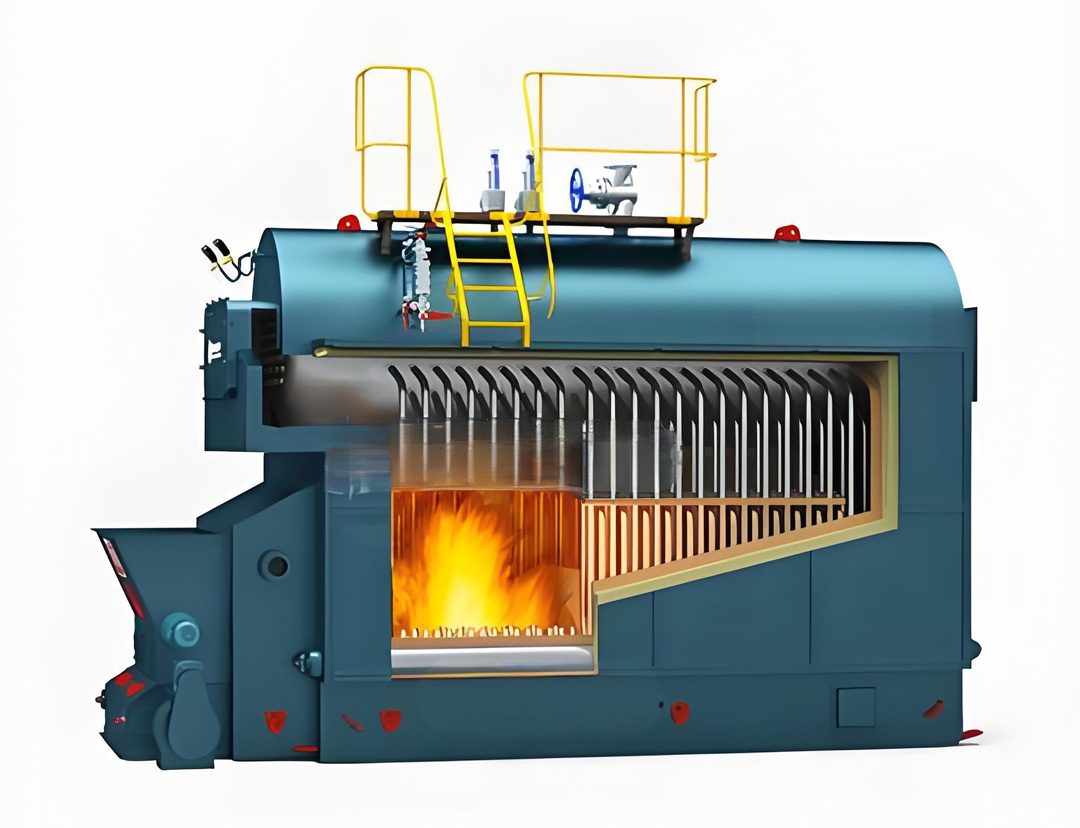

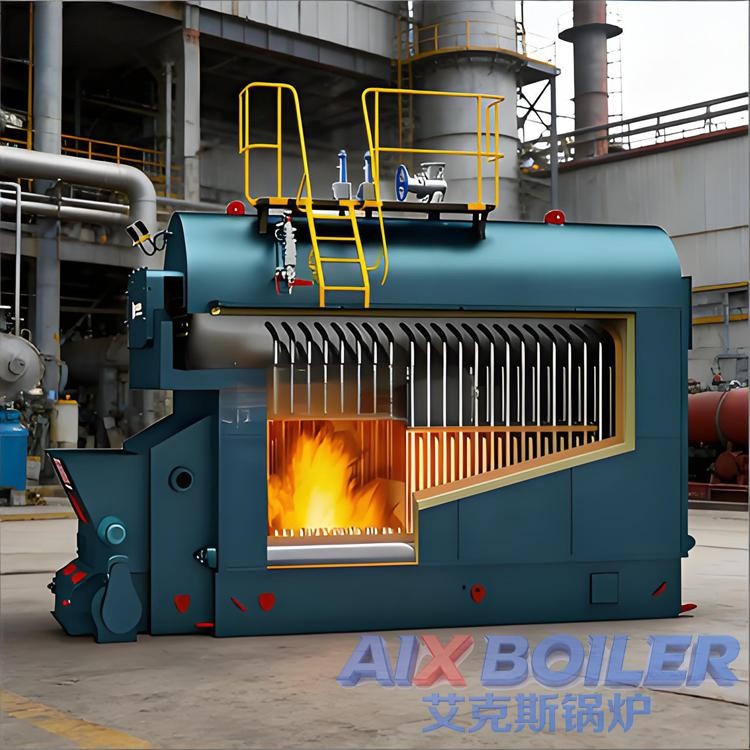

Aix coal & biomass fired steam boiler adopts a horizontal three-pass fire-water tube full wet-back structure, consisting of eight core parts: furnace body, chain grate, combustion system, smoke tube heating surface, economizer, feeding system, slag removal system and fully automatic control system. It is a high-efficiency industrial packaged boiler. During operation, fuel is evenly spread on the grate through automatic feeder and enters the furnace for gradual drying, gasification and full combustion. High-temperature flue gas enters the first-pass radiation heat exchange from the furnace, then transfers to the second-pass threaded smoke tubes for enhanced convection heat exchange through the combustion chamber, then enters the third-pass plain tubes for heat exchange, and finally recovers waste heat through the economizer to reduce exhaust gas temperature and heat feed water to improve thermal efficiency. Boiler water is quickly heated and vaporized in the heating surface tubes to form stable saturated steam output. Equipped with PLC intelligent control system, the boiler realizes automatic feeding, automatic ignition, automatic pressure control, automatic water supply, automatic slag removal and fault self-test alarm, truly unattended and stable operation, greatly reducing labor cost and operation intensity.

3. Core Features & Original Factory Advantages

Wide Fuel Range, Extremely Low Operating Cost
Capable of burning coal, biomass pellets, sawdust, straw, rice husk, branches and other fuels. Renewable and low-cost biomass fuel saves 40%–70% of operating cost compared with gas and Electric Boilers, greatly reducing enterprise burden.

High Thermal Efficiency, Remarkable Energy Saving
Three-pass enhanced heat exchange + threaded smoke tubes + economizer design fully absorbs heat, with thermal efficiency up to 88%–92%, 15%–25% more energy-saving than traditional boilers, greatly improving fuel utilization.

Fully Automatic Operation, Labor-saving
One-key start, automatic feeding, combustion, water supply, pressure stabilization, slag removal and ash cleaning. Supports remote monitoring, no frequent manual operation required, saving labor cost.

Reliable Structure, Long Service Life
Adopts full wet-back structure, corrugated furnace, high-quality boiler steel plate and seamless steel tubes. Welds are tested by flaw detection, safe pressure-bearing, high temperature resistance, corrosion resistance, service life over 15 years under normal use.

Full Combustion, Environmental Compliance
Equipped with secondary air, energy-saving furnace arch and dust removal interface, more complete combustion, low smoke, sulfur and nitrogen emissions. Can be equipped with dust removal equipment to meet environmental protection requirements, in line with green production policies.

Fast Installation, Strong Applicability
Delivered as horizontal packaged unit with pre-assembled furnace body, grate, control and pipelines. Only water, electricity and fuel connection needed on site, small footprint, suitable for new factories and old boiler renovation.

Strong Support from Original Factory
Aix Boiler independent R&D and production, no middleman price difference, transparent price, stable supply. Provides full-parameter customization and lifelong technical support, fast after-sales response.

4. Manufacturing Process & Quality Compliance

Aix coal & biomass fired steam boiler adheres to standardized lean manufacturing in the original factory, strictly implementing national biomass boiler and special equipment safety specifications. Furnace body adopts high-quality boiler special steel plate, CNC cutting, automatic welding, welds qualified by X-ray flaw detection. Heating surface adopts 20# boiler seamless steel tubes, threaded smoke tubes for enhanced heat exchange, less ash accumulation and higher efficiency. Grate adopts heavy-duty chain grate, stable operation, high temperature resistance and not easy to deform. Front and rear arches are poured with refractory concrete, full combustion and long service life. Each boiler undergoes four strict tests before delivery: hydrostatic test, air tightness test, safety protection test and commissioning test. Only qualified products are delivered with complete certificates including boiler qualification, inspection report and operation manual, ensuring smooth acceptance and filing.

5. Application Scenarios & Industry Solutions

With core advantages of low cost, high efficiency, stability and wide fuel range, Aix coal & biomass fired steam boiler is widely used in various industrial and commercial projects:

• Food Processing: Cooking, sterilization, drying, distillation, disinfection

• Chemical & Pharmaceutical: Reaction heating, concentration, purification, drying

• Textile Printing & Dyeing: Setting, drying, cooking, humidification

• Paper & Packaging: Drying, hot pressing, laminating, pulping

• Building Materials & Wood: Curing, drying, hot pressing, curing

• Brewing & Beverage: Fermentation, distillation, saccharification, sterilization

• Central Heating: Community, factory, school, hospital heating

• Agriculture & Breeding: Greenhouse heating, seedling insulation, drying

The boiler can be flexibly configured according to industry processes, steam consumption, fuel types and installation conditions, providing a one-stop low-cost steam solution, the preferred equipment for enterprises to save energy and replace old boilers.

6. Operation, Maintenance & After-sales Service

To ensure long-term stable operation, users should use qualified fuel, regularly clean grate, smoke tube ash and furnace coking, check feeding, slag removal and water supply systems, operate in accordance with the instruction manual, prohibit overload operation. As the original factory of coal & biomass fired steam boilers, Aix Boiler provides free on-site survey and scheme design, professional installation, commissioning and operation training, 12-month warranty and lifelong maintenance service, fast spare parts supply and emergency repair, regular return visits and system optimization upgrades, providing full protection for users.

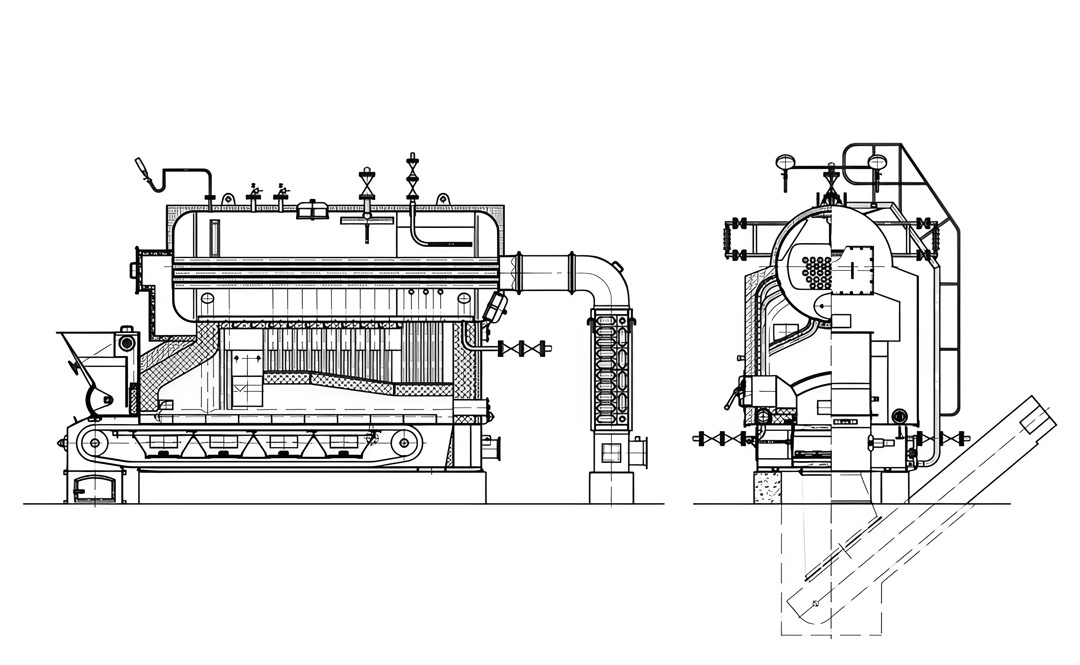

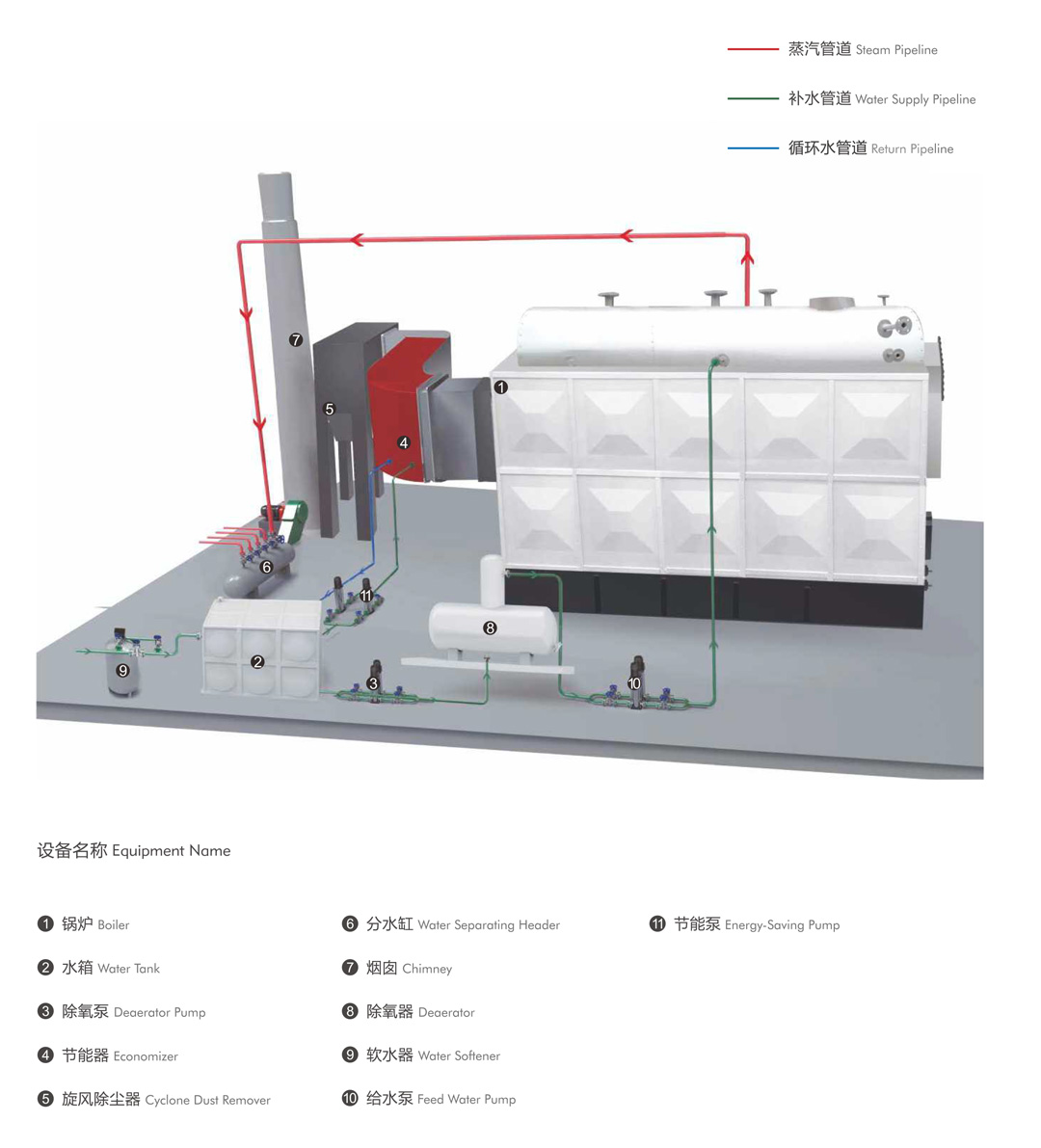

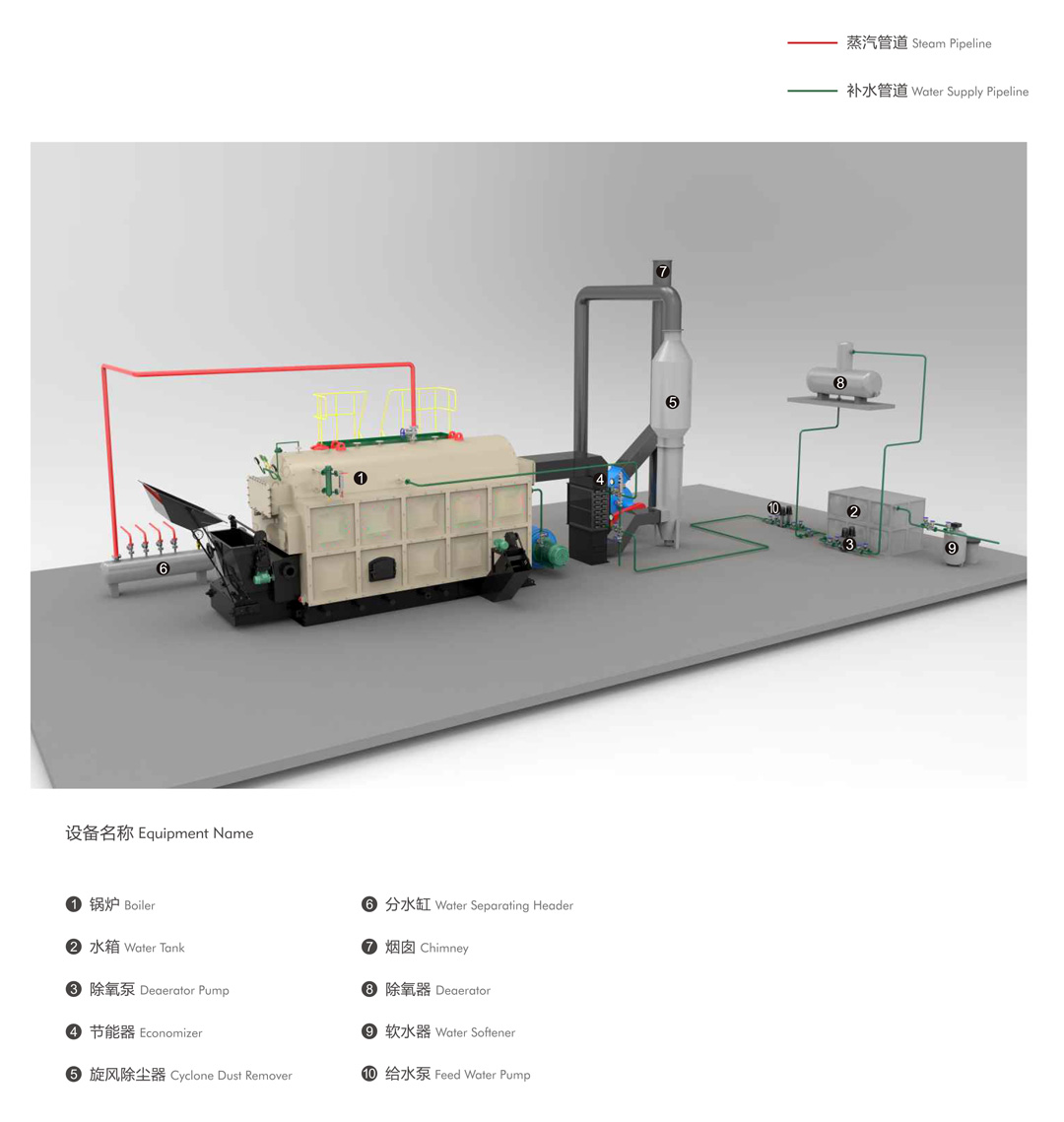

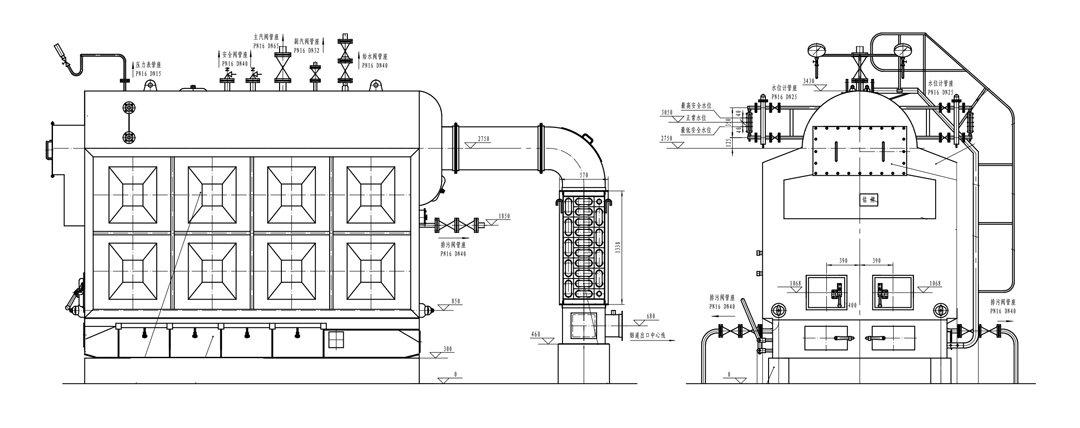

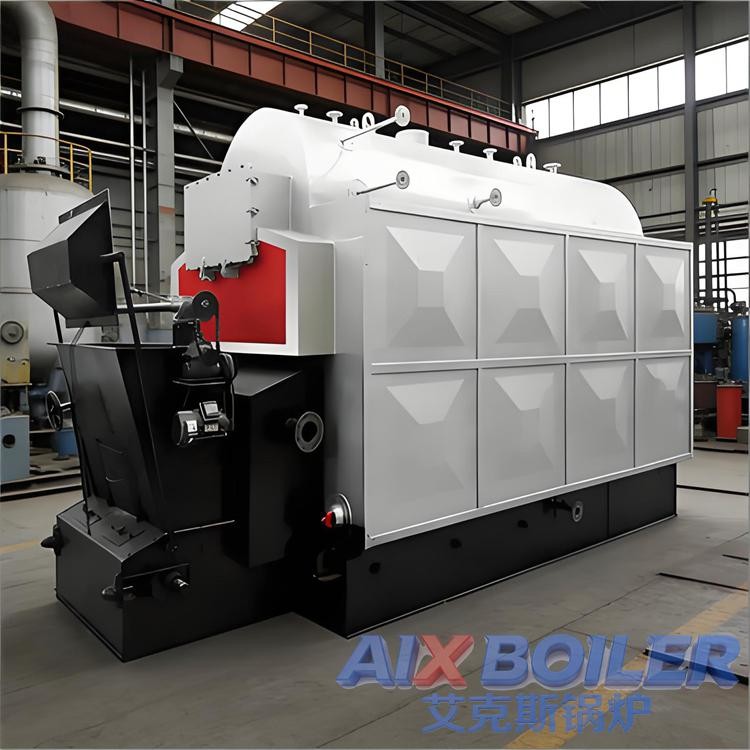

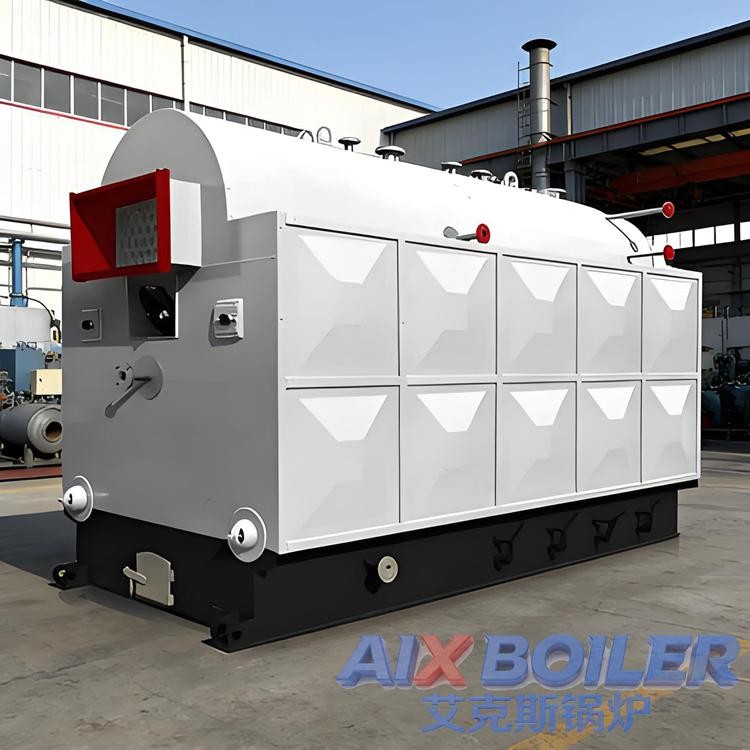

7.Graphic introduction

Choosing Aix coal & biomass fired steam boiler means choosing a modern industrial steam solution with low cost, high efficiency and reliability. Welcome customers all over the world to contact us for negotiation and on-site inspection!
