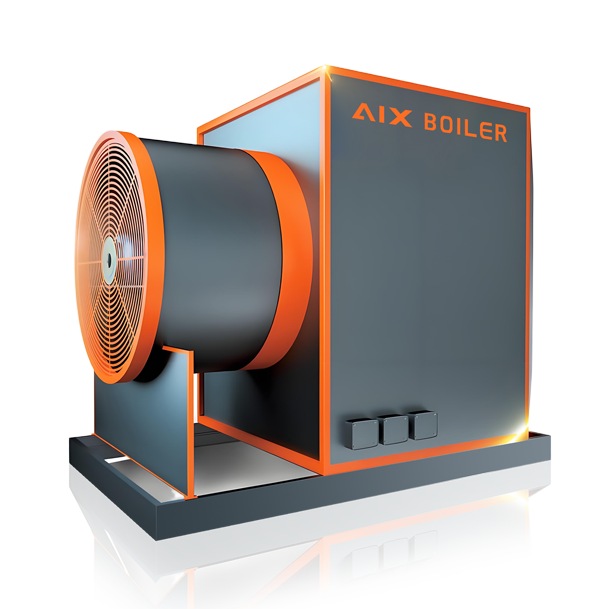

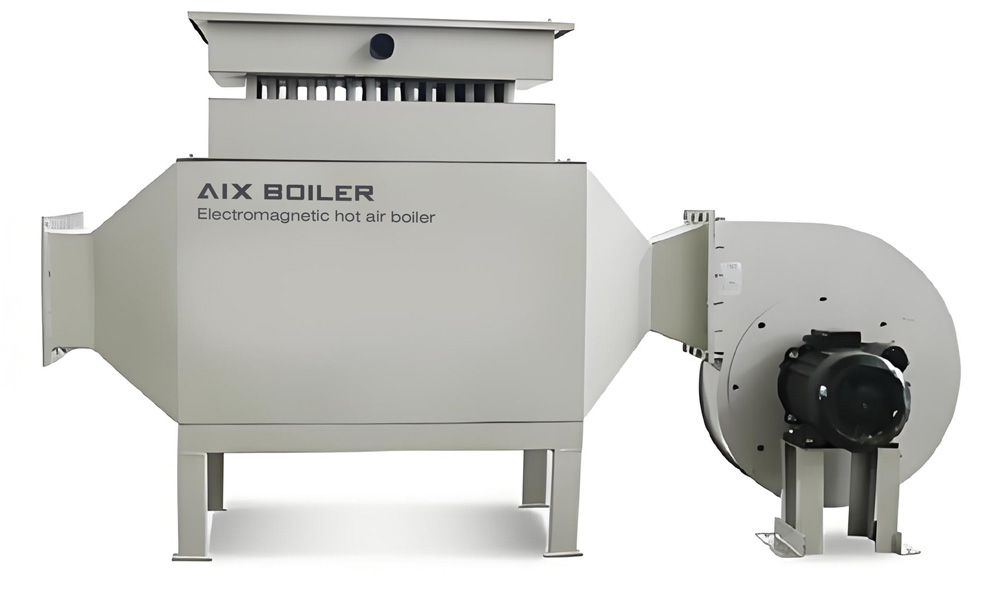

Aix Boiler Electric Heating Hot Air Boiler

Aix Boiler electric heating hot air boiler operates based on the principle of resistance heating + forced convection heat exchange. Using electric energy as the heat source, it efficiently converts electric energy into heat energy through stainless steel finned electric Heating Tubes. A high-temperature resistant circulation fan drives air to flow through the heating chamber, rapidly heating the air to produce continuous, stable and clean high-temperature hot air. There is no combustion, waste gas or smoke during operation, and the thermal efficiency can reach more than 98%. All indicators strictly comply with the specifications of <a href="https://www.chinaboiler.org.cn" target="_blank">China Boiler and Boiler Water Treatment Association</a> and <a href="https://openstd.samr.gov.cn/" target="_blank">GB/T 17410-2023 Industrial Hot Air Units</a>. As a professional industrial hot air equipment of Aix Boiler brand, this product is under full-chain control of independent R&D, production and quality inspection by the original factory. It integrates heating components, fan system, intelligent control system and safety protection system, specially providing stable heat source for industrial drying, heating and heat preservation, high-temperature air supply, space heating and other scenarios. It can fully replace coal-fired, gas-fired and oil-fired hot air furnaces, helping enterprises achieve green production, energy saving and environmental protection compliance.

1. Core Product Parameters (Aix Boiler Electric Heating Hot Air Boiler)

2. Working Principle & Technical Core

Aix electric heating hot air boiler adopts fully enclosed convection heat exchange structure, composed of five core parts: heating chamber, stainless steel finned electric heating tubes, high-temperature resistant circulation fan, intelligent temperature control system and multiple safety protection devices. The whole machine is integrated, pre-assembled and tested in the factory, and can be put into use only by connecting to power on site. The equipment takes direct resistance heating as the core technology. Current generates Joule heat through high-temperature resistant alloy electric heating wires, and the heat exchange area is greatly increased through finned tubes to rapidly heat the air. The circulation fan forces air circulation to ensure uniform hot air temperature, no dead angle and no local overheating, realizing rapid heating and stable heat supply.

Compared with traditional hot air furnaces, Aix electric hot air boiler completely abandons combustion mode and is driven by pure electricity, with 100% clean and impurity-free hot air, which does not pollute materials or affect product quality, especially suitable for food, medicine, precision drying and other scenarios. The equipment adopts PID intelligent variable frequency temperature control, which can automatically adjust heating power and fan speed according to set and real-time temperature, with temperature control accuracy up to ±1℃, heating speed up to 10℃/S, fast start-stop response, heat supply on demand without waste, significantly reducing energy cost. At the same time, it adopts multiple safety designs such as water-electricity separation, power-off without air, over-temperature protection and overload protection, fundamentally eliminating potential safety hazards such as fire, electric leakage and dry burning, and its operation safety is far better than traditional hot air equipment.

3. Core Features & Original Factory Advantages

1. Zero Pollution Clean Hot Air: Pure electric heating without combustion, no waste gas, smoke, odor or residue. Hot air is pure and pollution-free, fully in line with hygiene standards of food, medicine, electronics and other industries, helping enterprises easily pass environmental acceptance.

2. Ultra-High Thermal Efficiency & Energy Saving: Electric-heat conversion efficiency ≥98%, almost no energy loss. With high-efficiency thermal insulation structure, heat loss is extremely low. It saves 20%-40% energy compared with coal/gas hot air furnaces, significantly reducing long-term operating costs.

3. Fast Heating & Precise Temperature Control: Reach set temperature in short time after startup. PID intelligent temperature control ±1℃, continuously adjustable temperature, meet different process temperature requirements, improve product drying/heating quality and consistency.

4. Fully Automatic Intelligent Operation: One-key start, automatic constant temperature, automatic speed regulation, fault self-test and alarm, no special personnel on duty, support remote monitoring, greatly saving labor cost, suitable for modern intelligent factory demand.

5. Multiple Safety Protections: Full-dimensional safety mechanisms including over-temperature protection, power-off without air, leakage protection, overload protection, short-circuit protection, over-current protection, fan linkage protection, automatic shutdown in abnormality, safe and reliable.

6. Compact Structure & Easy Installation: Integrated design, small size, small footprint, no need for boiler room, chimney or fuel storage site, simple installation and convenient movement, suitable for new projects and old equipment renovation.

7. Stable, Durable & Long Service Life: Adopt stainless steel finned electric heating tubes, high temperature resistance, corrosion resistance, not easy to scale, long service life. Fans and core components are industrial-grade, can operate continuously 24 hours, with extremely low failure rate.

8. Original Factory Strength Guarantee: Aix Boiler independent R&D and production, no middleman price difference, transparent price, stable supply, support customization of power, temperature, air volume, explosion-proof, anti-corrosion, provide lifelong technical support and after-sales guarantee.

4. Manufacturing Process & Quality Compliance

Aix electric heating hot air boiler adheres to standardized manufacturing in original factory, strictly implements national industrial boiler and hot air equipment safety standards, full-process quality control from design, material selection, production to testing. Heating elements adopt food-grade 304/316 stainless steel finned electric heating tubes, large heat dissipation area, high heat exchange efficiency, long service life. Furnace body adopts high-quality cold-rolled steel plate + high-temperature plastic spraying, sturdy and durable, rust-proof and corrosion-resistant, beautiful and generous. Air duct system is optimized by fluid mechanics, small wind resistance, sufficient air volume, uniform hot air, low noise.

Each equipment undergoes strict heating test, air volume test, temperature control accuracy test, safety protection test and continuous operation test before leaving the factory to ensure stable performance and safety. Complete factory inspection report, operation manual, electrical schematic diagram and other complete data can be provided to meet the acceptance requirements of safety supervision, environmental protection, fire protection, etc., making installation, use and acceptance worry-free.

5. Application Scenarios & Industry Solutions

With core advantages of clean, high efficiency, energy saving, safety and intelligence, Aix electric heating hot air boiler is widely used in many industrial and commercial fields:

• Food & Medicinal Material Drying: Grain, fruit and vegetable, meat, seafood, medicinal materials, tea, nuts drying and dehydration

• Coating & Baking: Drying and curing of auto parts, hardware, home appliance shells, furniture after spraying

• Mine & Mine Heating: Coal mine wellhead anti-freezing, underground heating, mine equipment preheating, shaft insulation

• Textile Printing & Dyeing: Cloth drying, printing curing, non-woven fabric drying, textile setting

• Wood & Building Materials: Wood drying, plate drying, gypsum board drying, concrete curing

• 6.Graphic introduction

•

• <
