Stainless Steel Storage Tank

Aix Boiler 316L stainless steel storage tank operates based on the core principles of closed pressure storage, corrosion isolation, safety and stability. Made of S31603 austenitic stainless steel, it is designed as Class I pressure vessel, specially providing long-term sealed storage solutions for non-toxic and non-explosive liquid/gas media. The tank is formed by steel plate rolling and welding, and strictly inspected by kerosene penetration test, surface Level I non-destructive test and hydrostatic test, with fully qualified structural strength, sealing and corrosion resistance, which can stably store various raw materials, intermediates and finished media. This product is designed and manufactured in strict accordance with GB/T 150 Pressure Vessels and GB/T 7994 Test Methods for Glass-Lined Equipment standards. The inner and outer surfaces are clean, corrosion-resistant, dead-angle-free and easy to clean, widely used in petroleum, chemical, grain, oil, food, fire fighting, metallurgy, pharmaceutical, national defense and other fields, making it an indispensable core basic equipment for modern industry and strategic material reserve. As an own-brand product of Aix Boiler OEM factory, it is independently produced in the whole process with strict quality inspection and no middleman price difference, supporting full-range non-standard customization of volume, nozzles, legs, insulation, etc.

1. Core Technical Parameter Table

2. Product Structure & Working Principle

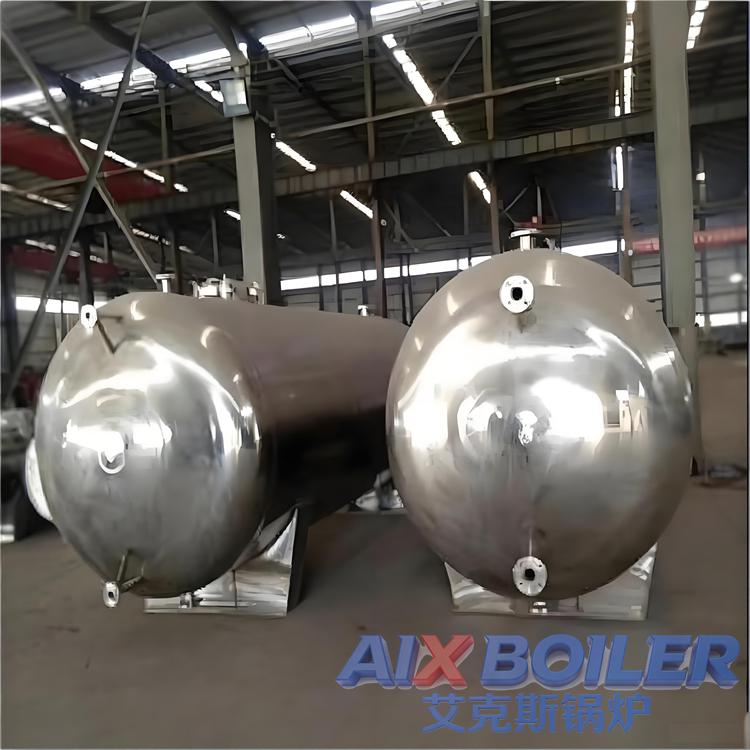

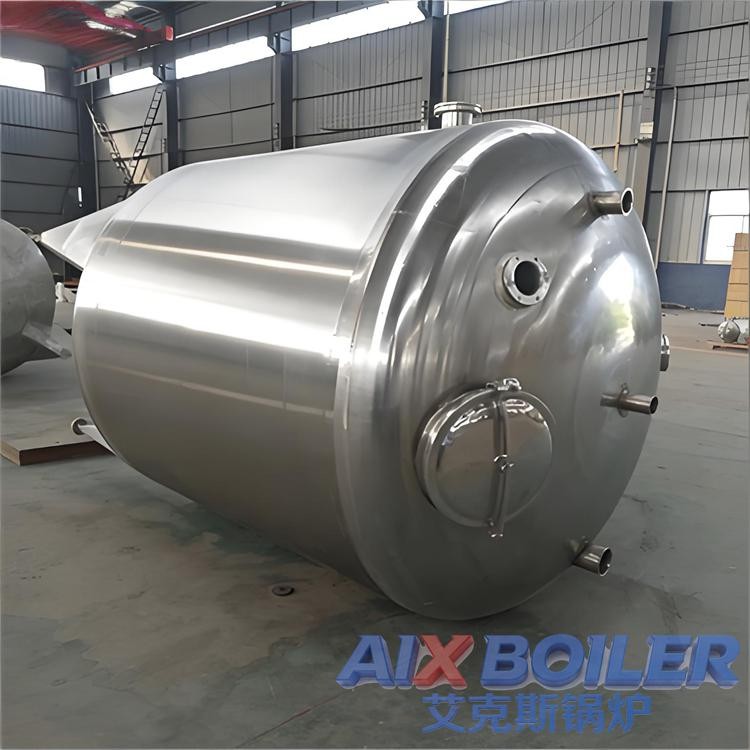

Aix Boiler stainless steel storage tank is mainly composed of cylinder, head, manhole, inlet/outlet, liquid level meter port, temperature measuring port, safety valve port, legs/support, ladder and guardrail. The whole structure is welded with strong sealing, stable pressure bearing, safety and reliability. The equipment stores liquid or gas media in a sealed state under atmospheric or micro-positive pressure. Relying on the excellent corrosion resistance and structural strength of 316L, it achieves long-term stable storage without polluting media, leaking or being corroded. After welding, the tank undergoes kerosene penetration test, key girth welds implement Level I non-destructive test, and hydrostatic test is carried out in accordance with GB/T 7994 standard to ensure 100% factory pass rate.

3. Core Advantages (OEM Factory)

1. Compliant Design of Class I Pressure Vessel, Guaranteed Safety
Strictly designed and manufactured in accordance with GB/T 150, complete qualifications, pass formal inspection process, smoothly pass acceptance and supervision.

2. High-quality 316L Stainless Steel, Hygienic & Corrosion Resistant
Authentic S31603 with Mo for better corrosion resistance, no intergranular corrosion after welding, suitable for food, pharmaceutical, fine chemical and other high-hygiene scenarios.

3. Multiple Inspections, Zero Leakage & Reliable
Triple inspections: kerosene leak test, girth weld Level I NDT, hydrostatic test, completely eliminate leakage, cracking and deformation risks.

4. OEM Factory Direct Supply, Higher Cost Performance
Whole-process production including independent design, cutting, welding, polishing and assembly, no middlemen, support customization, stable delivery and fast after-sales response.

5. Flexible Structure, Wide Application
Configurable as vertical, horizontal, insulated, jacketed, corrosion-resistant, polished, etc., meeting storage, transfer, mixing, buffering and other purposes.

4. Applicable Industries & Uses

Widely used in petroleum, chemical, grain & oil, food & beverage, pharmaceutical, fire fighting, metallurgy, environmental protection, new energy and national defense industries:

• Chemical: Storage of raw materials, solvents, additives, intermediates

• Food: Storage of drinking water, vegetable oil, syrup, sauce, additives

• Pharmaceutical: Storage of purified water, ingredients, intermediates, sterile liquid

• Fire Fighting: Storage of fire water, foam liquid

• Grain & Oil: Storage of edible oil, oil materials, grain processing liquid

• Long-distance Pipeline: Initial station collection & storage, terminal station receiving & reserve, gas peak shaving storage

5. Production Quality Control & After-sales Service

Aix Boiler has intelligent production workshop, professional welding team and perfect quality inspection system, implementing whole-process control from raw material warehousing to finished product delivery. Each storage tank is provided with certificate of conformity, material certificate and inspection report. As the OEM factory of stainless steel storage tanks, we provide free scheme design, on-site installation guidance, operation training, 12-month warranty, lifelong maintenance and 7×24-hour technical support, making users rest assured to purchase and use.

Choose Aix Boiler 316L stainless steel storage tank, choose compliant, safe and durable industrial storage solutions. Welcome to consult customization and visit our factory!
