Reverse Osmosis Water Treatment Equipment

The core working principle of reverse osmosis (RO) water treatment equipment is reverse osmosis membrane selective separation technology. Driven by pressure higher than the osmotic pressure of the solution, this technology uses high-precision reverse osmosis membranes with a pore size of only 0.0001 microns to intercept and separate impurities such as inorganic salts, heavy metal ions, organic matter, colloids, bacteria and viruses in raw water, only allowing water molecules to pass through the membrane elements, so as to realize deep purification, high-efficiency desalination and purification of raw water. This technology complies with the mandatory specifications of Boiler Safety Technical Code TSG 11-2020 and Measures for the Supervision and Administration of Drinking Water Hygiene issued by the State Administration for Market Regulation of China, and also meets the industry technical standards for reverse osmosis water treatment equipment issued by the Water Quality Association (WQA). It is the most widely used and most stable core water treatment technology in the field of industrial pure water preparation, boiler feed water treatment and medical purified water production at present.

1. AIX Boiler: Factory Direct Strength and Core Brand Advantages

AIX Boiler is a national high-tech factory direct manufacturer integrating R&D, production, sales, installation and after-sales operation and maintenance of reverse osmosis water treatment equipment. It has a 15,000 ㎡ standardized clean production workshop, fully automatic CNC processing equipment, membrane element performance testing laboratory and a professional water treatment technology R&D team. We have been deeply engaged in industrial water treatment and boiler supporting water treatment for more than ten years, focusing on customizing highly adaptable reverse osmosis pure water solutions for various industrial scenarios and boiler systems. As an original factory direct supply enterprise, we eliminate all intermediate links. All core accessories of the equipment are original genuine products, supporting full-process non-standard customization. From membrane element selection, pretreatment system configuration, tank material to intelligent control system, we can carry out exclusive design according to the user's raw water quality, water standard, on-site working conditions and production capacity demand. At the same time, we provide a full chain of services including equipment commissioning, operation training and lifelong after-sales maintenance, and have provided stable and reliable reverse osmosis water treatment equipment and supporting services for more than 4000 industrial enterprises, heating units, pharmaceutical food, electronic and chemical enterprises nationwide.

Our product system covers the full series of reverse osmosis water treatment equipment. The core products include four core series: AIX boiler special reverse osmosis feed water equipment, single stage reverse osmosis pure water equipment, two stage reverse osmosis purified water equipment, and large industrial reverse osmosis water treatment system, which can adapt to the full production capacity water demand of 0.25t/h-200t/h. Whether it is small steam boiler feed water treatment, commercial pure water supply, or large power plant boiler feed water, electronic grade ultrapure water preparation, pharmaceutical purified water production, we can provide a 100% matching water treatment solution to fully ensure the long-term safe, efficient and stable operation of the water system.

2. Core Product Series and Technical Parameters of AIX Boiler Reverse Osmosis Water Treatment Equipment

As a factory direct manufacturer, we can provide customization services for all models and specifications of reverse osmosis water treatment equipment. The technical parameters of the core standard model products are shown in the table below. All parameters can be adjusted and optimized according to the user's actual water demand and raw water quality report:

3. Core Structure and Working Process of AIX Boiler Reverse Osmosis Water Treatment Equipment

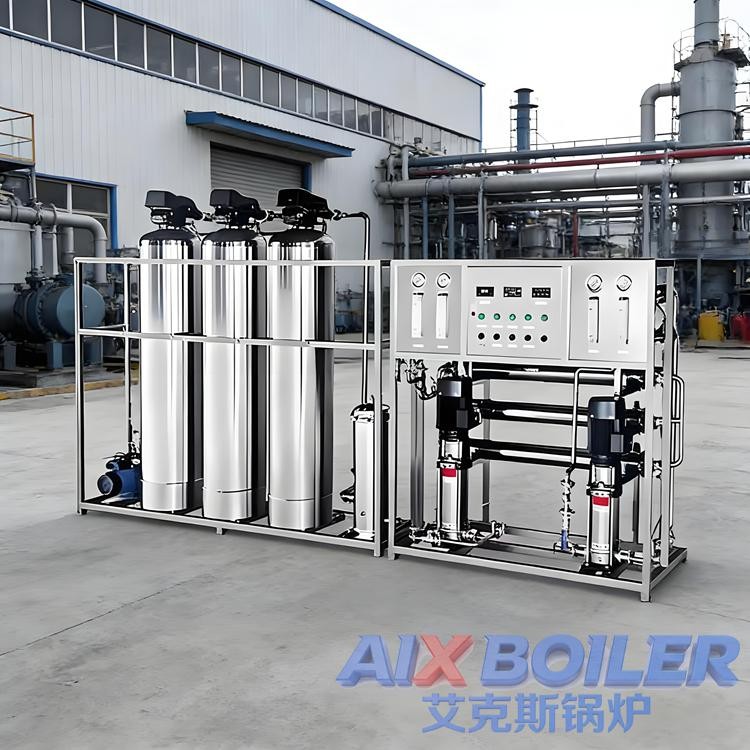

AIX boiler reverse osmosis water treatment equipment adopts modular integrated design, with exclusive optimization for boiler feed water and industrial pure water scenarios. The core structure includes five core units: pretreatment system, reverse osmosis host system, post-treatment purification system, cleaning system and intelligent control system. Each unit adopts original genuine accessories. The operation stability, desalination efficiency and service life of the equipment are far higher than the industry average level. The core working process is divided into four core stages:

1. Raw Water Pretreatment Stage

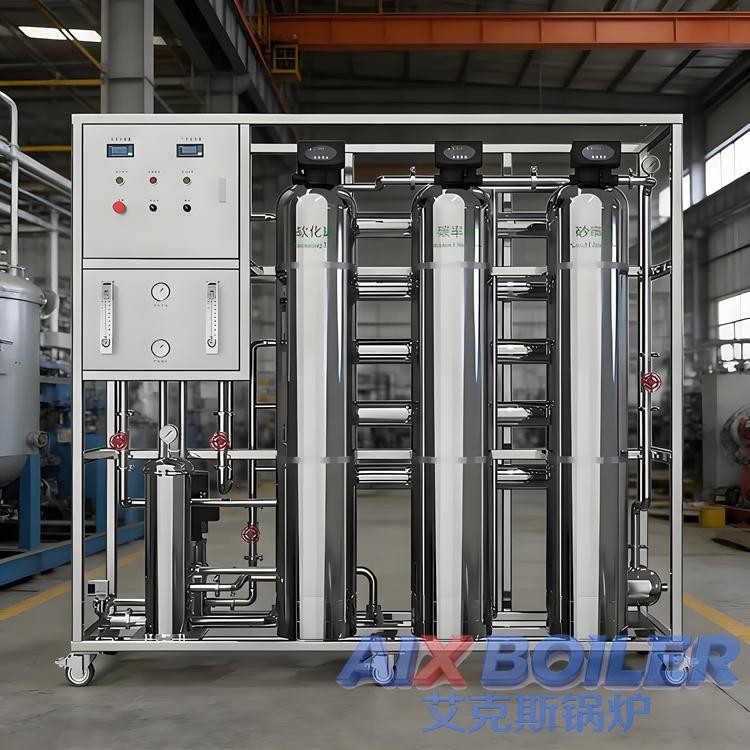

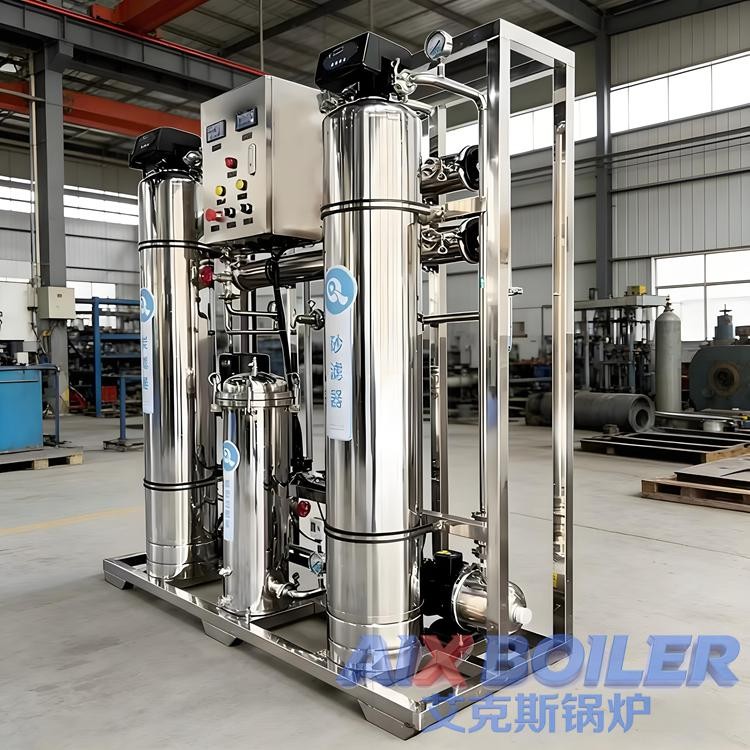

Raw water enters the pretreatment system through the water inlet pipeline, and is treated step by step through multi-media filter, activated carbon filter, water softener and precision filter in turn to remove sediment, suspended solids, colloids, residual chlorine, large particle impurities and hardness ions in the raw water, reduce the turbidity and pollution index of raw water, protect the rear reverse osmosis membrane elements from pollution and scratch, extend the service life of membrane elements, and provide pretreated water that meets the influent standard for the reverse osmosis host system.

2. Reverse Osmosis Host Desalination Stage

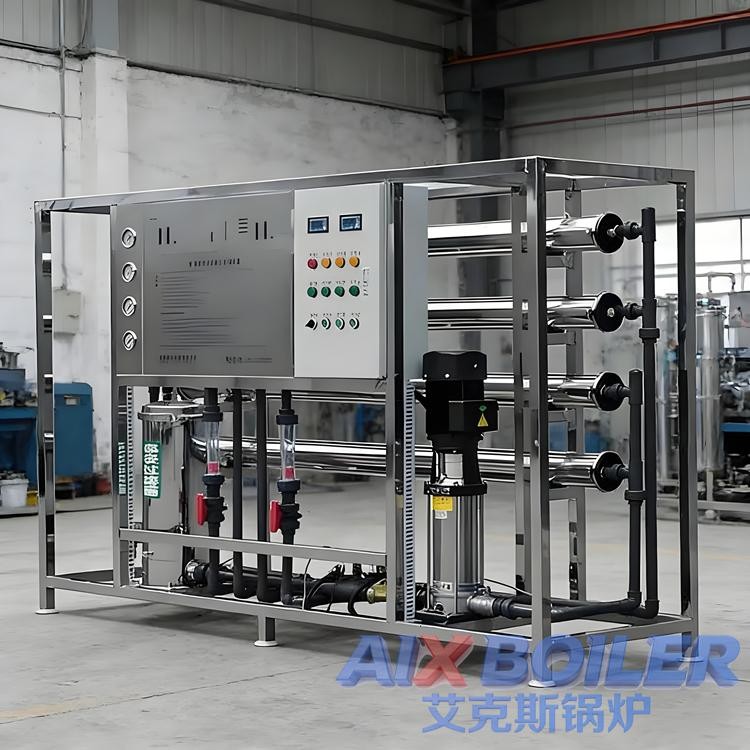

The pretreated water is pressurized by the high-pressure pump and enters the reverse osmosis membrane module. Under the action of pressure higher than the osmotic pressure, water molecules pass through the reverse osmosis membrane with a pore size of only 0.0001 microns, gather to the pure water pipeline and are transported to the pure water tank; while impurities such as inorganic salts, heavy metal ions, bacteria, viruses and organic matter in the raw water are intercepted by the membrane elements and discharged centrally with the concentrated water pipeline. This stage can remove more than 98% of soluble salts and more than 99% of microorganisms and organic matters in the water, completely solving the problems of scaling and corrosion of boiler feed water.

3. Pure Water Post-treatment Purification Stage

For high-standard water scenarios such as pharmacy, electronics, ultra-high pressure boilers, the reverse osmosis produced water can be further treated by mixed bed, EDI electrodeionization system, ultraviolet sterilizer, polishing mixed bed and other post-treatment units to realize the preparation of ultrapure water and purified water. The effluent quality can fully meet various industry water requirements such as Water Quality for Industrial Boilers GB/T 1576-2018, purified water standard of Chinese Pharmacopoeia, and electronic grade ultrapure water standard.

4. Membrane Element Cleaning and Maintenance Stage

When the reverse osmosis membrane elements are polluted, the water output decreases or the desalination rate reduces, the equipment can carry out forward/reverse cleaning of the membrane elements with special cleaning agents through the supporting cleaning system to remove pollutants on the membrane surface, restore the desalination performance and water production capacity of the membrane elements, without frequent replacement of membrane elements, greatly reducing the long-term operation cost of the equipment. The exclusive intelligent control system of AIX can monitor the operation status of membrane elements in real time, automatically remind the cleaning cycle, and ensure the long-term stable operation of the equipment.

4. Core Competitive Advantages of AIX Boiler Reverse Osmosis Water Treatment Equipment

• Factory Direct Supply, Exclusive Customized Service: We have our own production workshop and membrane element testing laboratory, no intermediate price difference. All equipment can be customized 1:1 according to the user's raw water quality report, boiler parameters, water standards and on-site working conditions. We have exclusive anti-scaling and anti-corrosion optimization for boiler feed water scenarios, and provide one-to-one technical service throughout the process from equipment selection, pipeline layout to installation and commissioning, ensuring that the equipment is perfectly adapted to the boiler feed water system.

• Brand Exclusive Technology, Intelligent Fully Automatic Operation: AIX reverse osmosis equipment is equipped with an exclusive developed intelligent control system, which can realize 24-hour unattended fully automatic operation, real-time monitor core parameters such as inlet and outlet water quality, system pressure, water output, desalination rate, automatically start and stop the equipment, adjust operating parameters, trigger cleaning procedures, and has multiple safety functions such as water shortage protection, high pressure protection, overload protection, without frequent manual operation, greatly reducing the operation and maintenance labor cost of enterprises.

• Original Genuine Accessories, Stable and Reliable Quality: The core reverse osmosis membrane elements of the equipment can be matched with original imported Dow, Hydranautics, domestic Vontron and other first-line brand membrane modules. The high-pressure pump adopts well-known brand products such as CNP. The pretreatment tank and pipeline adopt 304/316L stainless steel, carbon steel rubber lined and other corrosion-resistant materials. All accessories have passed strict pressure resistance, corrosion resistance and performance tests. The normal service life of the equipment can reach more than 15 years, and the normal service life of the membrane elements can reach 3-5 years.

• High Efficiency, Energy Saving and Low Consumption, Compliance Guarantee: The system desalination rate of the equipment is stable ≥98%, up to more than 99.5%. The effluent quality fully meets the mandatory standard of Water Quality for Industrial Boilers GB/T 1576-2018, which can completely solve the problems of boiler feed water scaling, corrosion, steam and water carryover, improve the boiler thermal efficiency by more than 20%, reduce energy consumption and boiler maintenance cost, and avoid boiler safety accidents caused by substandard water quality, fully ensuring the compliant and safe operation of the boiler.

• Full Chain After-sales Service, Lifelong Operation and Maintenance Guarantee: We have a professional after-sales installation and operation and maintenance team, which can provide on-site installation, commissioning and operation training services nationwide. After the equipment is delivered, we provide 12 months free warranty, lifelong supply of original factory parts, membrane element replacement, technical upgrade and on-site operation and maintenance services, 7*24 hours technical response, to ensure the long-term stable operation of the user's equipment.

5. AIX Boiler Full Process Reverse Osmosis Water Treatment Solution Service System

As a professional factory direct manufacturer of industrial water treatment, we not only provide high-quality reverse osmosis water treatment equipment, but also provide users with a full-process, one-stop pure water solution, covering the whole project cycle:

1. Pre-water Quality Testing and Scheme Design: We provide free raw water quality testing services for users. Professional water treatment engineers tailor the exclusive reverse osmosis water treatment solution according to the water quality report, boiler parameters, water standards and on-site working conditions, and issue a detailed equipment configuration list, installation layout drawing, operation cost calculation and water quality compliance guarantee scheme.

2. Original Factory Production and Quality Control: All equipment is produced and assembled in our own factory, and the whole process testing is carried out in strict accordance with the ISO9001 quality management system. Each equipment has passed the pressure resistance test, operation test and water desalination test before leaving the factory to ensure that the equipment meets the standard when leaving the factory, and the effluent quality meets the agreed standard.

3. On-site Installation and System Commissioning: The professional installation team completes the equipment installation, pipeline connection and system commissioning on site to ensure that the equipment is perfectly connected with the boiler feed water system and water consumption system, and the equipment is delivered to users after the effluent quality meets the standard.

4. Operation Training and Technical Disclosure: Provide one-to-one full process training on equipment operation, daily maintenance and fault troubleshooting for user operators, issue detailed equipment operation manual, maintenance guide and water quality testing specifications to ensure that users can independently complete the daily operation and maintenance of the equipment.

5. Lifelong After-sales and Operation Maintenance Guarantee: After the equipment is delivered, we provide free warranty service, lifelong supply of original factory parts, membrane element replacement, technical upgrading and on-site operation and maintenance services, regularly return visit the equipment operation status, provide users with preventive maintenance suggestions, and fully solve the user's worries.

6. Relevant Industry Standards and Specifications for Reverse Osmosis Water Treatment Equipment

The production, installation and acceptance of all AIX boiler reverse osmosis water treatment equipment are strictly in accordance with the current relevant national standards and specifications. The core implementation standards include:

• Technical Requirements for Reverse Osmosis Water Treatment Equipment GB/T 19249-2013

• Water Quality for Industrial Boilers GB/T 1576-2018

• Boiler Safety Technical Code TSG 11-2020

• Hygienic Safety and Functional Evaluation Specification for Drinking Water Processors - Reverse Osmosis Treatment Device GB 17323-1998

• Purified Water Equipment GB/T 36043-2018

• Performance Test for Water Treatment Equipment - Reverse Osmosis Device GB/T 13922.4-2009

Our equipment has fully passed the testing of third-party authoritative institutions. The effluent quality, equipment operation performance and safety performance fully meet the requirements of relevant national standards, which can meet the needs of annual inspection, environmental assessment and safety acceptance of various boiler systems, and also adapt to the water compliance requirements of pharmaceutical, food, electronics, chemical and other industries.
