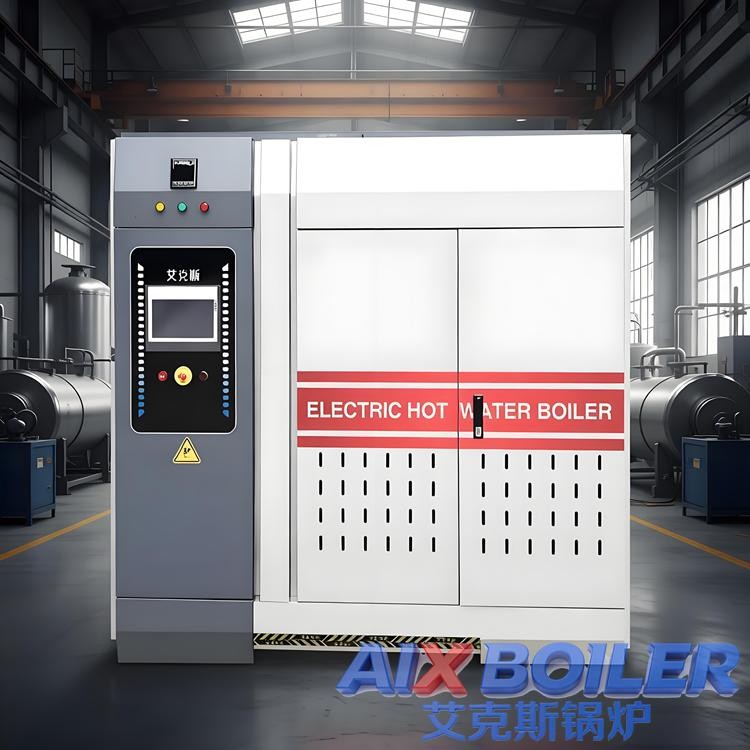

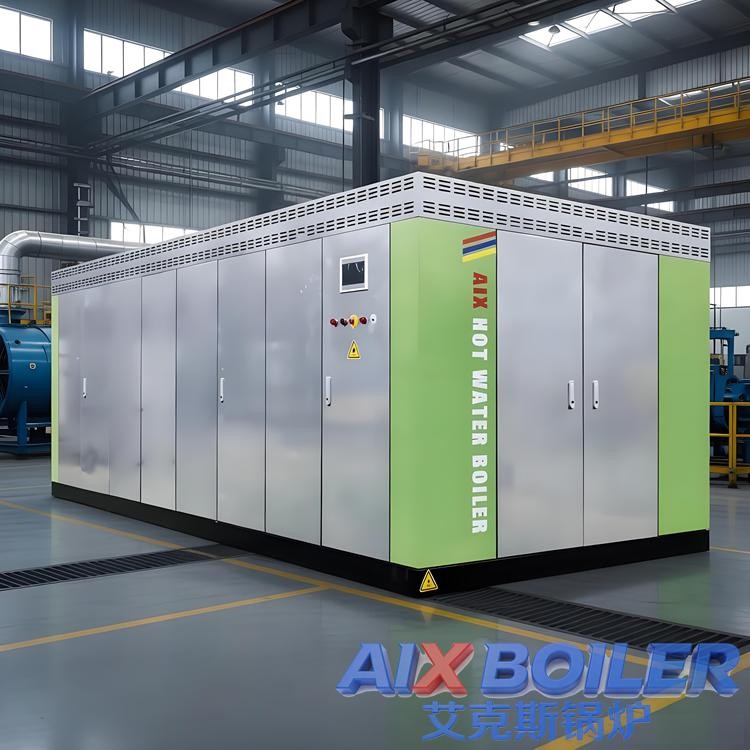

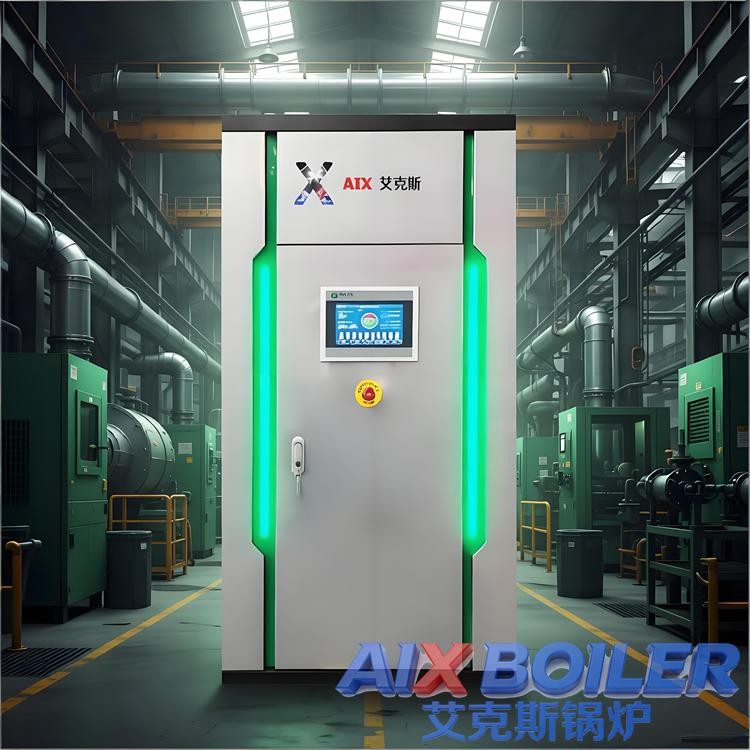

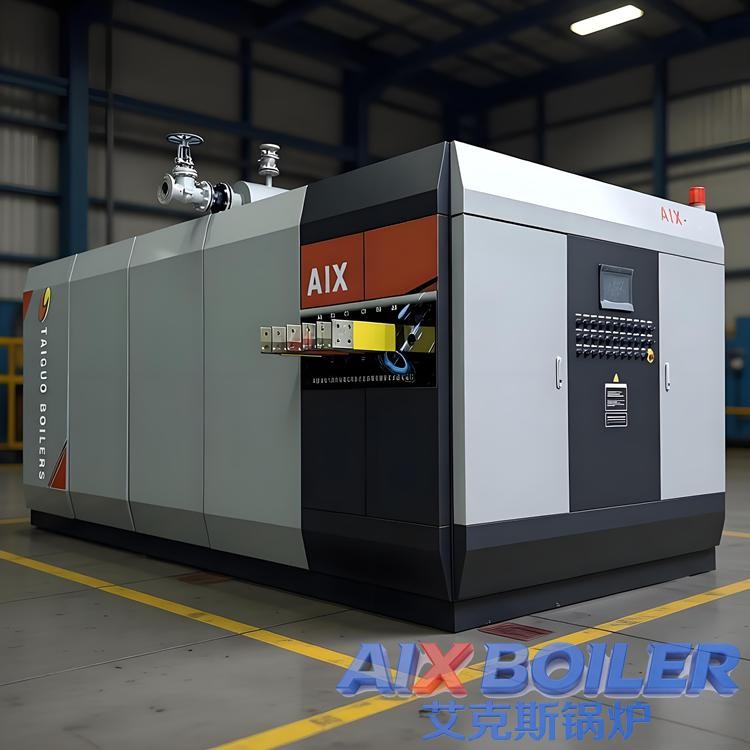

Electric Heating Hot Water Boiler

Aix Boiler electric heating hot water boiler operates based on closed pressure electric heating + closed circulation heating. It adopts a water-filled pressure structure. Stainless steel resistance Heating Tubes directly heat the boiler water, and the circulation pump outputs constant temperature hot water. It can stably output 30℃–95℃ high-temperature hot water under ≤1.0MPa pressure. The system is equipped with pressure gauge, safety valve and constant pressure water supply device to ensure no vaporization at high temperature, constant pressure and safe operation. All indicators strictly comply with the specifications of <a href="https://www.chinaboiler.org.cn" target="_blank">China Boiler and Boiler Water Treatment Association</a> and Hot Water Boiler Safety Technical Supervision Regulations. As a core high-power industrial hot water equipment of Aix Boiler brand, this product is independently developed, produced and inspected by the original factory. It integrates heating, control, circulation, pressure stabilization and protection, and adopts Siemens PLC intelligent control system. It is designed for central heating, domestic hot water, industrial process hot water, high-lift transportation, high-altitude environments and other scenarios. It can be expanded in parallel with multiple modules, which is efficient, stable, energy-saving and environmentally friendly. It can fully replace traditional coal-fired and gas-fired hot water boilers to meet the high-quality hot water supply needs of large projects and extreme working conditions.

1. Core Product Parameters (Aix Boiler Electric Heating Hot Water Boiler)

2. Working Principle & Technical Core

Aix electric heating hot water boiler adopts integrated module design, composed of heating system, control system, pressure boiler body, circulation pump, safety valve and constant pressure water supply pump. The whole machine is pre-assembled and tested in the factory for quick on-site installation. The equipment uses electric heating as heat source. Stainless steel heating tubes are immersed in heating, with high heat conversion efficiency, fast heating speed and less scaling. The boiler is a water-filled pressure structure without water level gauge. It relies on triple monitoring of pressure gauge, safety valve and thermometer, and maintains system pressure balance with constant pressure water supply to ensure no vaporization of high-temperature hot water and continuous stable output.

Equipped with Siemens PLC self-programming control system, water temperature, pressure and operation status are displayed in real time. The circulation pump and heating group can be automatically started and stopped according to the set temperature, supporting automatic switching between heating mode / bathing mode: start the pump when reaching the upper limit temperature and stop when lower than the lower limit in heating mode; stop the pump when reaching the upper limit temperature and start when lower than the lower limit in bathing mode, truly realizing unattended and fully automatic operation. High-power models adopt step-by-step group control, automatically switching heating groups according to load to reduce power grid impact, and can also manually adjust power to flexibly adapt to different heat demand.

3. Core Features & Original Factory Advantages

1. Stable pressure, wide application: Electric heating hot water boiler adopts closed pressure design, not limited by lift, altitude and distance. It can stably heat in high floors, long-distance transportation and high-altitude areas, and still operate reliably in extreme cold weather.

2. Adjustable water temperature, multi-purpose: 30℃–95℃ water temperature freely set, can provide low-temperature heating hot water and high-temperature bathing, domestic and process hot water, meeting both heating and hot water demand.

3. High efficiency, anti-scaling, easy maintenance: High-quality stainless steel heating tubes, high thermal efficiency, less scaling; flange connection structure, convenient disassembly, cleaning and replacement, greatly reducing maintenance cost and downtime.

4. Intelligent fully automatic operation: Siemens PLC control system supports fully automatic operation with timing, constant temperature and constant pressure. Circulation pump and heating are intelligently linked, no special personnel on duty, saving labor cost.

5. Multiple safety protections: With leakage protection, anti-dry burning low water level protection, overheating protection, sensor abnormality protection, voltage abnormality protection, phase failure protection, overpressure safety valve protection and other all-round safety mechanisms, automatic shutdown in abnormality, safe and reliable.

6. Environmental protection and zero pollution: Pure electric heating without combustion, no exhaust gas, no smoke, no noise, no pollutants, fully in line with national environmental protection policies, no need for approval and supporting environmental protection facilities.

7. Energy saving and consumption reduction: Multi-layer high-efficiency insulation material, extremely low heat loss; step control and load adjustment function to avoid idling waste, greatly reducing operating electricity cost.

8. Module combination, flexible expansion: Standardized module design, compact structure, small footprint, single or multiple parallel expansion, easily adapting to small heating to large central heating projects.

9. Original factory strength: Aix Boiler independent R&D and production, no middlemen, transparent price, stable supply, support power, temperature, configuration customization, provide 12-month warranty and lifelong technical service.

4. Manufacturing Process & Quality Compliance

Aix electric heating hot water boiler adheres to standardized manufacturing in original factory, strictly produced in accordance with national hot water boiler safety specifications. The boiler body adopts high-strength pressure material with mature welding process to ensure long-term pressure without leakage; heating elements adopt food-grade stainless steel pressure heating tubes, high temperature resistance, corrosion resistance and longer service life; pipelines and valves adopt high-temperature and pressure resistance configuration, reliable sealing and durable; the outer layer of the equipment uses high-grade centrifugal glass fiber cotton for multi-layer insulation, greatly reducing heat loss; the appearance adopts German industrial design, plastic spraying anti-rust treatment, beautiful and durable, adapting to indoor and outdoor complex installation environment.

Each equipment undergoes strict water pressure test, insulation test, safety protection test and operation commissioning before leaving the factory. Complete factory inspection report, operation manual, electrical schematic diagram and other complete data can be provided to meet the acceptance requirements of safety supervision, environmental protection, fire protection, etc., making installation and use more secure.

5. Application Scenarios & Industry Solutions

With advantages of pressure, high power, fully automatic, stable and reliable, Aix electric heating hot water boiler is widely used in:

• Residential quarters, industrial parks, commercial buildings: Central heating, 24-hour constant temperature hot water

• Hotels, guesthouses, bathing centers, schools, hospitals: Domestic bathing hot water, heating

• High-altitude areas, plateau projects: Stable heating and water supply without altitude influence

• Chemical, textile, food, electroplating: Industrial process high-temperature hot water

• Old boiler renovation: Replace coal and gas boilers to achieve energy saving, environmental protection and unattended operation

• 6
